Forklifts are industrial transport vehicles, which refer to various wheeled transport vehicles for loading, unloading, stacking, and short-distance transportation of palletized goods. The International Organization for Standardization ISO / TC110 is called an industrial vehicle. Commonly used for storage of large items, usually powered by fuel engines or batteries.

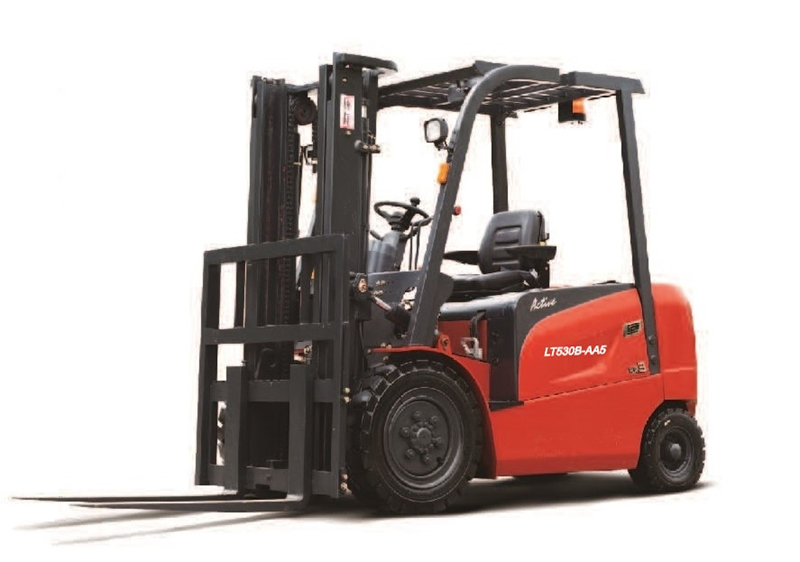

Electric Powered Forklift Truck LT530B-AA5
Rated Capacity:3 TONS, MAX.
Lifting Height-Standard:3000MM.
Inquiry1.It can realize regular discharge under temperature between-4°–60°C. The excellent low-temperature performance makes it more suitable for the cold chain industry.
2.Under the normal condition of charging and discharging, after 4000 times of circular operation, the capacity keeps higher than 80%. The battery’s service lift can keep more than 10 years.
3.No need for fluid infusion and dust-prevention kind of daily manual maintenance.
4.The JOOMACK Third Generation Load Sensing Priority Hydraulic System is energy-saving and highly efficient. The working efficiency can improve by 13.4%.
5.It is equipped with an electronic smart cooling system to use in continuous working conditions. It avoids the motors and controller from shutting down due to the thermal protection after long working hours.
| Model | UNIT | LT530B-AA5 | |
| Features | Power Type | Lithium battery | |
| Drive Mode | Sit Type | ||
| TRated Load | KG | 3000 | |
| Load Center Distance | mm | 500 | |
| Lifting Height | mm | 3000 | |
| Weight | Deadweight | KG | 5000 |
| Battery Weight | KG | 270 | |
| Deadweight without Battery | KG | 4730 | |
| Dimensions | Front Suspension | mm | 475 |
| Wheel Base | mm | 1680 | |
| Mast Tilt Angle(Forward/Backward) | ° | 6/12 | |
| Mast Static Height | mm | 2100 | |
| Free Lifting Height | mm | 145 | |
| Max. Height when lifting | mm | 4235 | |
| Overhead Guard Height | mm | 2150 | |
| Seat Height | mm | 130 | |
| Driver’s Height | mm | 1130 | |
| Overall Length (till fork surface) | mm | 2530 | |
| Overall Width | mm | 1220 | |
| Fork Dimension(L*W*T) | mm | 1070X125X45 | |
| Min. Ground Clearance(full load) | mm | 125 | |
| Min. Turning Radius | mm | 2210 | |
| Tire | Tire Type | Pneumatic | |
| Qty. of Tires(front/rear) | 2×2 | ||
| Front tire spec. | 28×9-15-14PR | ||
| Rear Tire spec. | 18×7-8-14PR | ||
| Performance | Travel Speed(full load/no load) | mm/s | 13/15 |
| Lifting Speed (full load/no load) | mm/s | 275/420 | |
| Max. Traction Force(full load/no load) | KN | 15.7/16.2 | |
| Grade ability(full load/no load) | % | 15/15 | |
| Drive System | Travel Motor Power | KW | 16.6(AC) |
| Working Motor Power | KW | 13.5(AC) | |
| Standard Battery (voltage/capacity) | V/Ab | 80/200 | |
LT530B-AA5 is an industrial handling vehicle for loading, unloading, stacking, and short-distance transportation of goods. Widely used in mechanized loading, unloading, stacking, and short-distance transportation of stations, ports, airports, factories, warehouses, and other departments.
