Forklifts are industrial transport vehicles, which refer to various wheeled transport vehicles for loading, unloading, stacking, and short-distance transportation of palletized goods. The International Organization for Standardization ISO / TC110 is called an industrial vehicle. Commonly used for storage of large items, usually powered by fuel engines or batteries.
InquiryHigh quality
— Optional allocation of a variety of high-quality power, equipped with engine electronic control technology, can protect the engine in many ways, to ensure the safe operation of the engine.
— Load sensing and dual pump hydraulic system technology are adopted to improve the operation efficiency and reduce the overall energy consumption.
— The super large capacity aluminum tube belt radiator and optimized heat dissipation channel further improve the heat dissipation capacity of the vehicle.
High security
— Equipped with wide-field portal frame system and wide-angle rearview mirror, to provide a good working field of vision for drivers
— All car LED lights, high brightness, long life, energy-saving, and environmental protection.
High comfort
— Standard diameter 300mm steering wheel, assist system, lightness control, reduce driver fatigue.
— It adopts an optimized cover system and hood locking mechanism. The hood is flexible and convenient to maintain.
— Spacious control space, comfortable seats, enjoy the pleasure of riding.
Rich options
ISUZU engine, high exhaust device, air prefilter, fireproof cap, solid tire, two-stage free lift mast, three-stage free lift mast, widening fork frame, fork sleeve, side shifter, paper roll clamp, bale clamp, carton clamp, block clamp, rotators, drum clamp, push-pull, etc.
| Model | UNIT | LT570 | |||
| Specifications | Power Unit | Diesel | |||
| Operator Type | Driver/Seat | ||||
| Transimission Box Type | Electronic hydraulic transmission | ||||
| Rated Capacity | kg | 7000 | |||
| Load Center | mm | 600 | |||
| Max.Lifting Height | mm | 3000 | |||
| Tire Type | Pneumatic Tire | ||||
| Tire Number | Front | 4 | |||
| Rear | 2 | ||||
| Tire Size | Front | 8.25×15-14PR | |||
| Rear | 8.25×15-14PR | ||||
| Performance | Lifting Speed | Loaded | mm/s | 450 | |
| Unloaded | 500 | ||||
| Lowering Speed | Loaded | mm/s | 500 | ||
| Unloaded | 450 | ||||
| Travelling Speed | Loaded | km/h | 25 | ||
| Unloaded | 30 | ||||
| Max.Gradeability (Loaded) | % | 27 | |||
| Max.Drawbar Pull (Loaded) | kn | 5400 | |||
| Mast Tilting Angle (Fwd/Bwd) | deg | 6/12 | |||
| Free Lifting Height | mm | 155 | |||
| Turning Radius | mm | 3370 | |||
| Dimensions | Overall Length (with fork) | mm | 4870 | ||
| Overall Width | mm | 2000 | |||
| Overhead Guard Height | mm | 2480 | |||
| Fork Size (LxWxT) | mm | 1220x150x65 | |||
| Mast Height (Fork lowered) | mm | 2500 | |||
| Battery (Voltage/Capacity) | V/Ah | 2×12/90 | |||
| Truck Weight | kg | 9200 | |||
| Fuel Tank Capacity | L | 135 | |||
| Engine | Brand | ISUZU | CHAOCHAI | ||
| Model | 6BG1 | 6102 | |||
| Rated Power | kw/rpm | 82.3/2000 | 80.8/250 | ||
| Rated torque | n-m/rpm | 418/1500 | 354/1650 | ||
| Number Of Cylinder | 6 | 6 | |||
| Displacement | 6.49 | 5.78 | |||
“1. Wide view mast, with visibility increased to enhance the operator’s view and safety.
2. High strength safeguard/cabin by profiled steel insert all around keep the driver safer.”
Is placed inside the frame to increase the maneuvering space. With electronically controlled shifting, shifting is light and simple. It adopts human-powered hydraulic braking, and rationally designs and operates the brake operating mechanism, which is light in operation, sensitive in response, safe and reliable, and equipped with micro-motion control to facilitate access to the goods.
Integral roof guardProfiled steel structure, high strength, and convenient configuration of the cab.

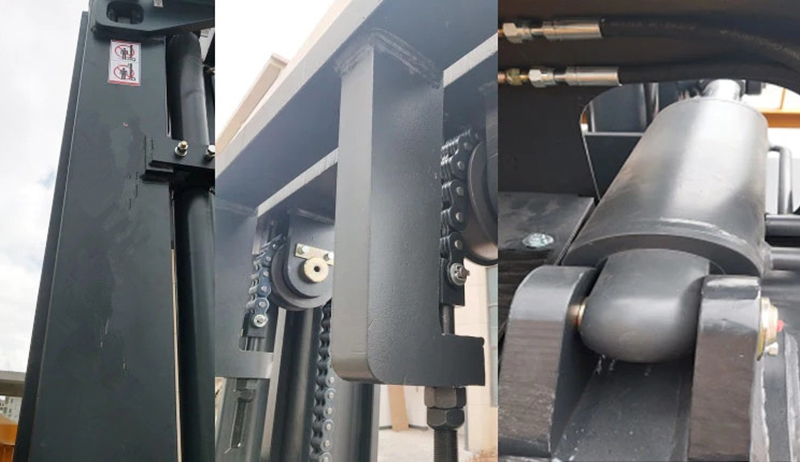

Mast: wide view & durableWide-view mast provides excellent through-the-mast visibility improving the work efficiency and allowing safe operation of the forklift. I beam rails and heavy tie bar construction reduce twisting while handling long, lateral loads on rough surface applications.

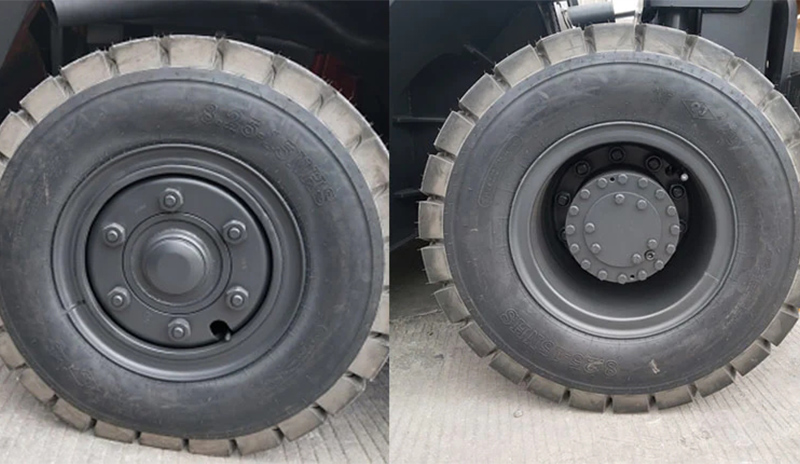

Tires: high quality & durableJOOMACK forklift tires are special tires with a footprint giving them greater stability and lift capacity in work environments.

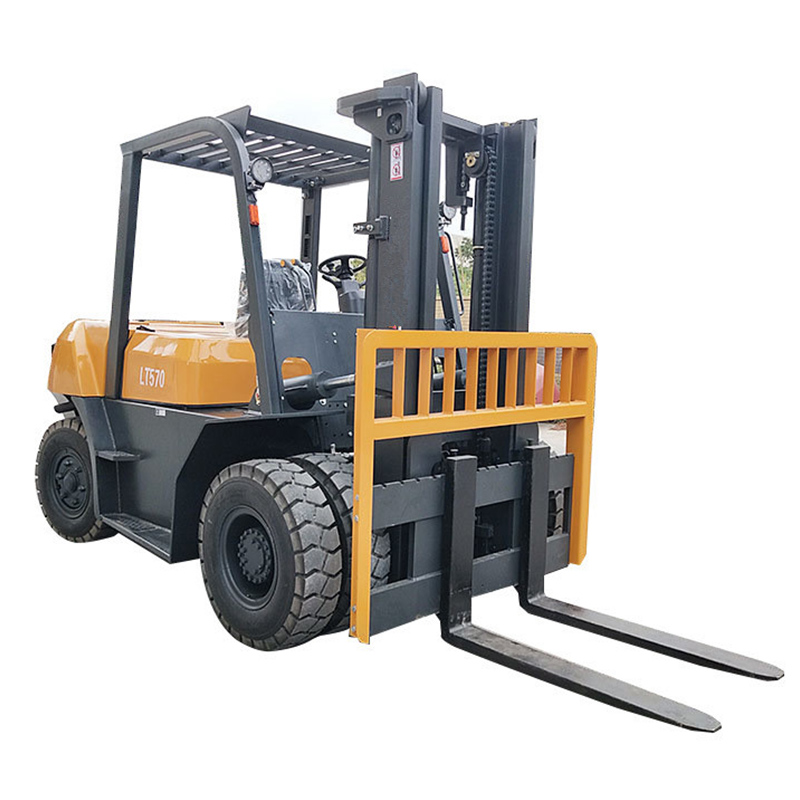

Application and after-sales serviceLT570 is an industrial handling vehicle for loading, unloading, stacking, and short-distance transportation of goods. Widely used in mechanized loading, unloading, stacking, and short-distance transportation of stations, ports, airports, factories, warehouses, and other departments.
