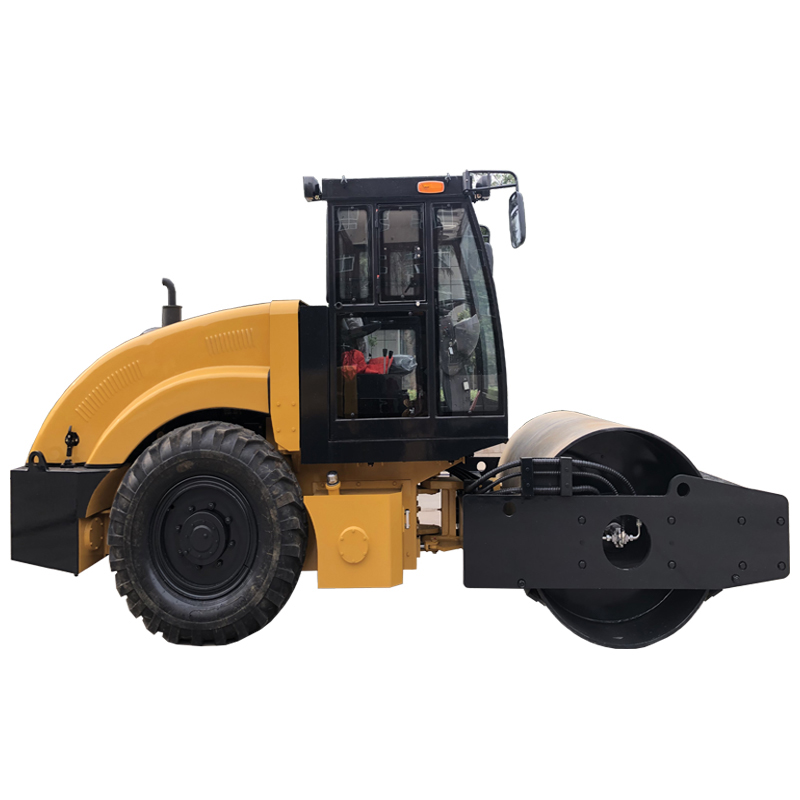

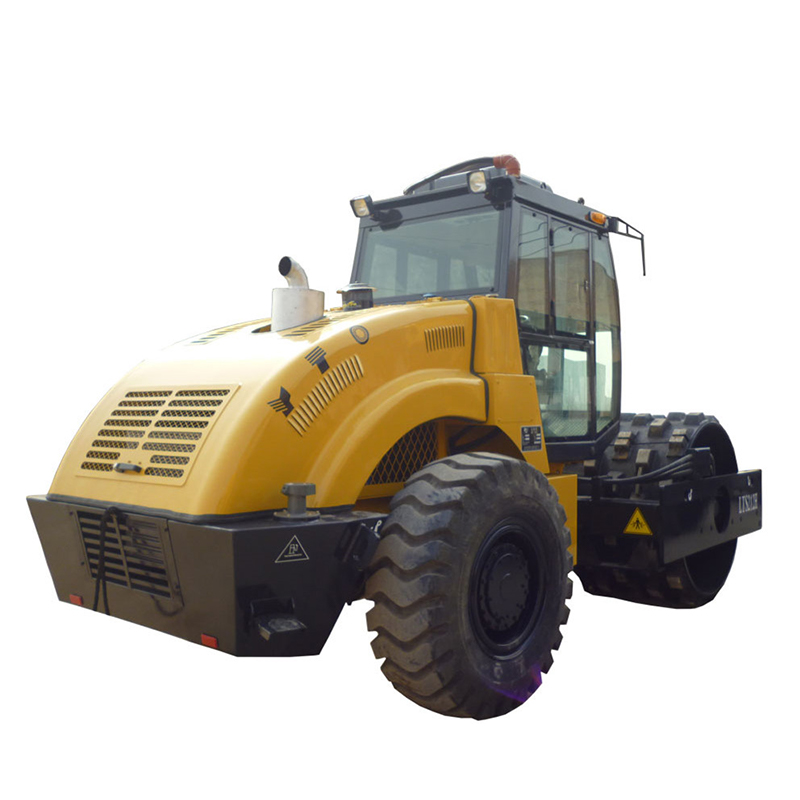

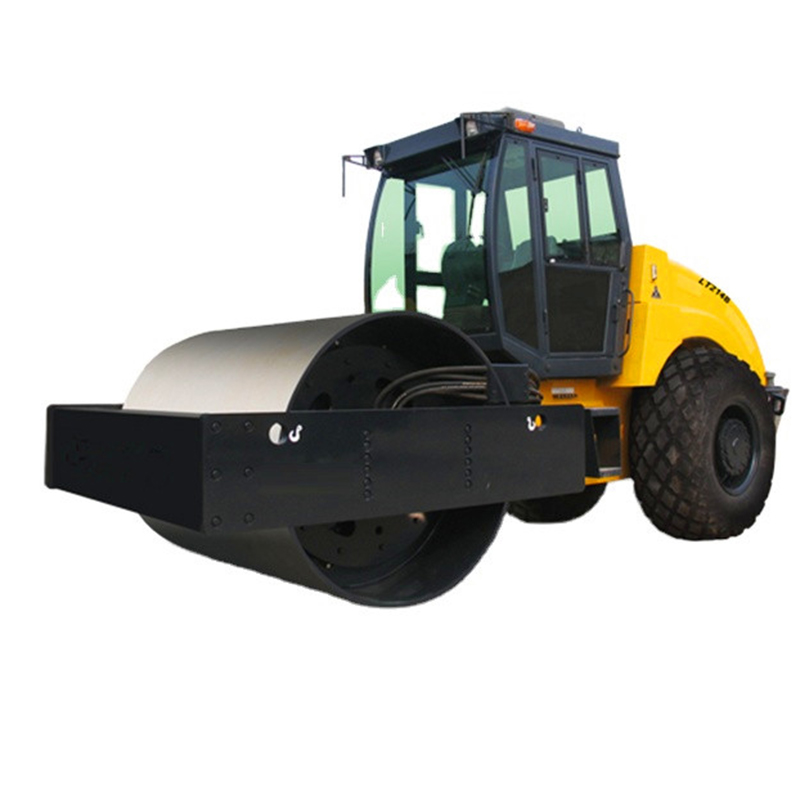

A single drum vibratory roller is a kind of road repairing equipment. It is mainly used for the compaction of the base layer, sub-base layer, and filling of various materials. It is the compaction operation of high-grade highways, airports, ports, dams, and industrial construction sites. It is especially suitable for the compaction of earthwork and stonework foundations such as roadbeds, cushions, and bases.

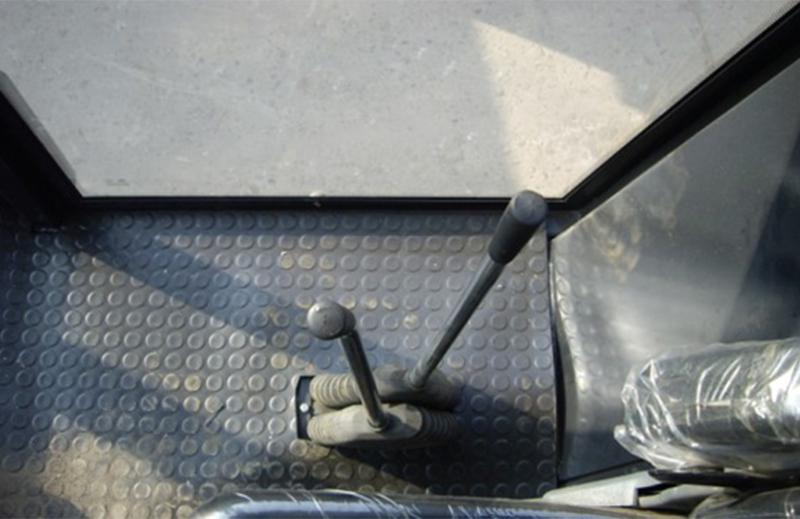

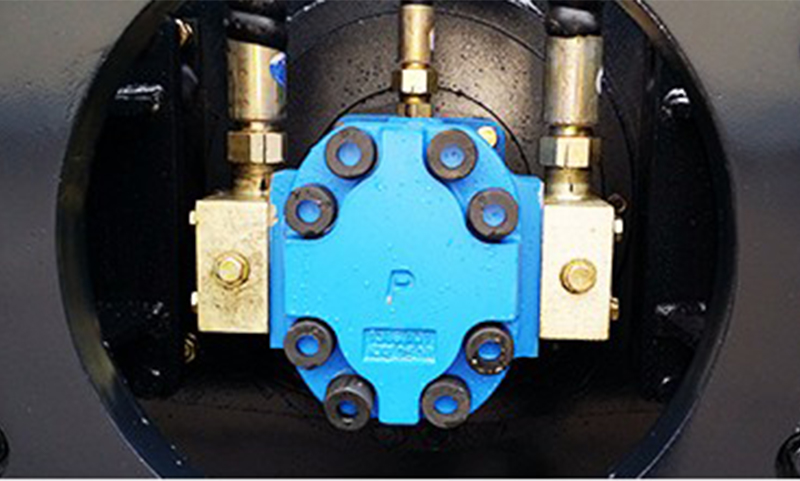

InquiryFront-wheel hydraulic vibration, hydraulic steering, rear wheel mechanical drive, equipped with four gears forward and backward non-clutch power shift gearbox, easy to operate, strong climbing ability, and fast transition speed.
Special vibrating wheel technology, large centrifugal force, high compactness, and high working efficiency.
Strengthen special rear axle, the brake system adopts the Air-cover-oil caliper disc brake, which has a good braking effect and is safe and reliable.
Articulated frame, light steering, small turning radius, flexible maneuver.
The rear hood can be turned freely at a large angle, the engine inverted, the humanized layout, and the maintenance are within reach.
Unique appearance modeling, compact structure, low center of gravity, smooth driving, good front, and rearview.

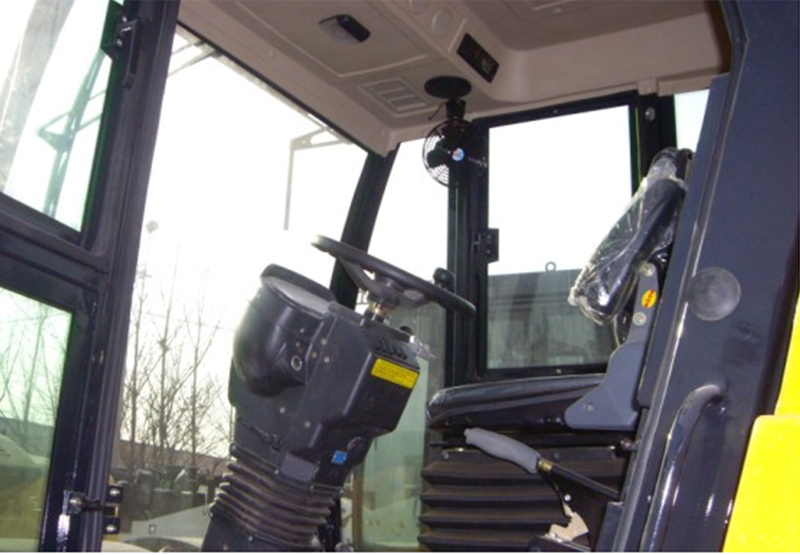

Adopt two-stage damping, install adjustable elastic suspension damping seat, driving comfortable.

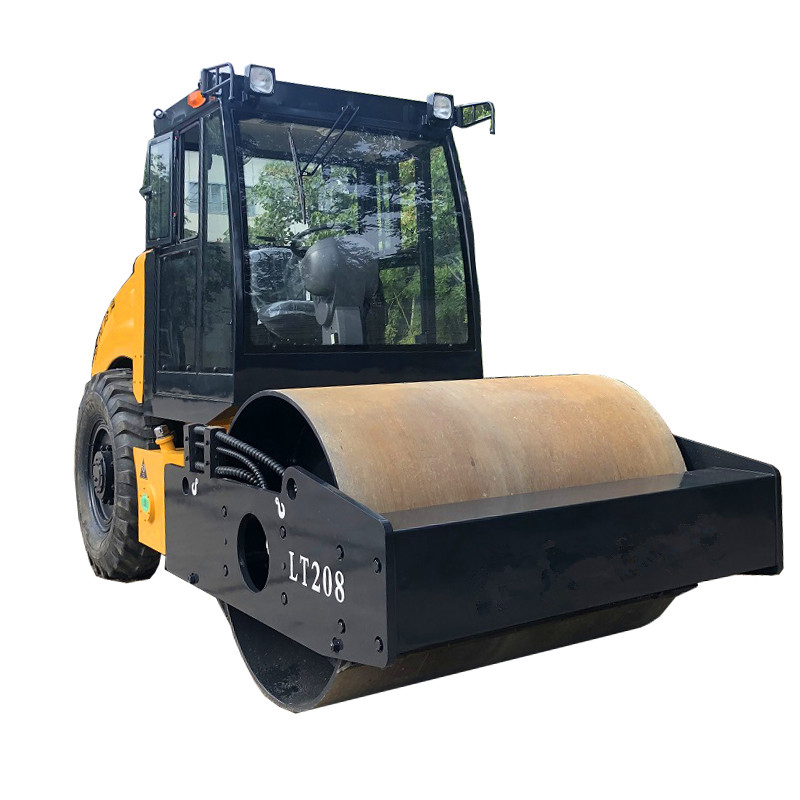

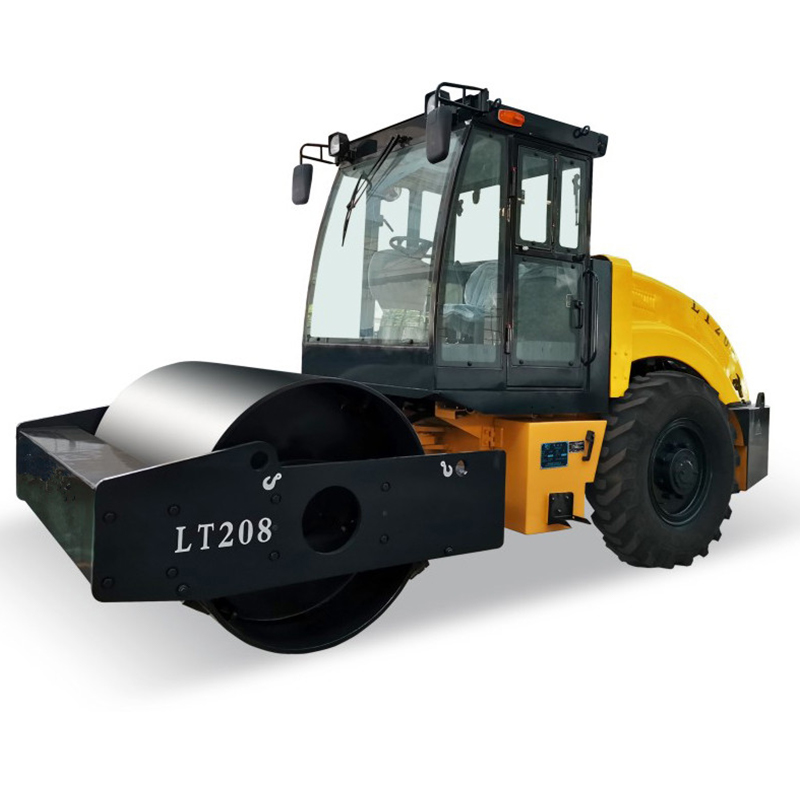

8-18 tons single-drum mechanical drive vibration roller main technical parameters| Model | LT208 | |
| Operating mass | kg | 8000 |
| Static linear load | N/cm | 235 |
| Vibration frequency | HZ | 53 |
| Vibration amplitude | mm | 0.4 |
| Centrifugal force | KN | 82 |
| Travel speed | Km/h | 2.2-12.8 |
| Grade ability | % | 35 |
| Ground clearance | mm | 320 |
| Turning radius | mm | 6000 |
| Drum diameter | mm | 1220 |
| Drum width | mm | 1700 |
| Drum rim thickness | mm | 24 |
| wheelbase | mm | 2750 |
| Overall dimension | mm | 5050*1880*2690 |
| Diesel model | CF4C90G-Z | |
| Diesel power | kw | 66.3Kw |
| Diesel speed | R/min | 2400 |
| Fuel tank capacity | L | 190 |
This series of rollers with strong shock force and high static linear pressure is suitable for rolling non-cohesive materials such as gravel, gravel, crushed stone, sand-gravel mixture, rock fill, and clay. It is mainly used for the compaction of large-scale foundation projects such as highways, mines, dams, airports, ports, railways, and craft sites.
