Wheel log loader (referred to as the log loader) is an important piece of equipment in the construction of engineering machinery and is widely used in the loading and unloading of timber in ports, lumber yards, and wood processing plants. Its rated load is 3ton, rated power is 92kw, and operating weight is 10.1ton.
Inquiry1.Powerful engine:

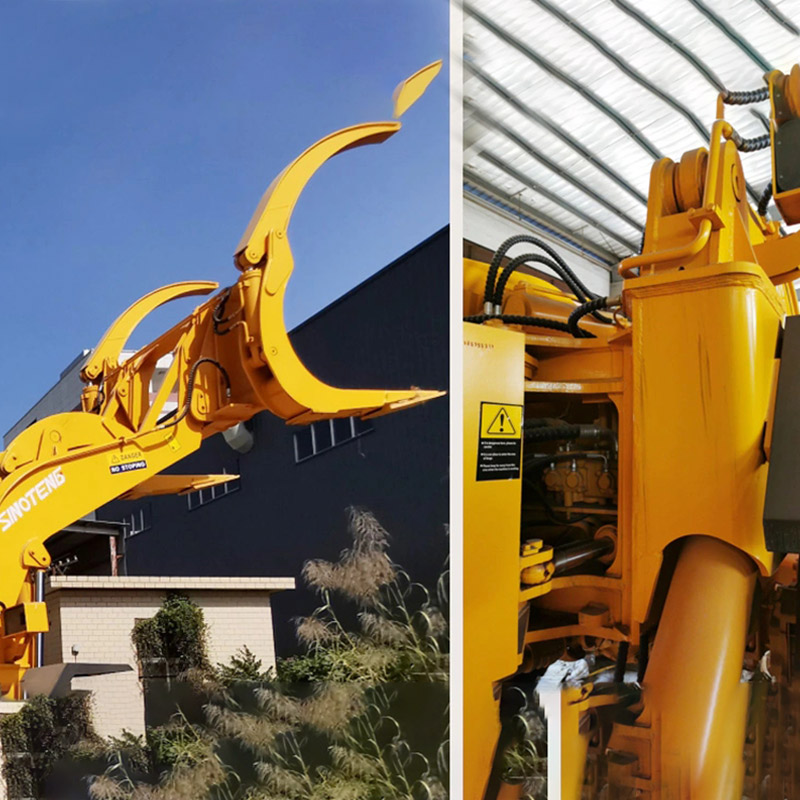

Weichai Engine, strong power, energy conservation, and environmental protection. Cummins engine, Shangchai engine is optional. Quenched integral Anti-wear grapple is made in Japan. Specially designed for the heavy log, effectively prevent any break, prolongs the grapple’s life to a great extent.
2.Hydraulic systems:
To adopt confluence of dual-pump confluence and diffluence technology, rational use of engine power, reduce energy consumption effectively. Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
3.Comfortable operating environment:
Cab with a broad view, noise-isolation, and vibration absorber meet all kinds of operation, which can be dismantled for large space. Radio with MP3 function and speaker, the joystick control system (Optional) ensure easy operation and more comfortable.
4.Easy to maintain:
New design of skeleton structure hood. Wide-opening hood Makes servicing and maintenance of the engine easier. The large distance between up and down articulated boards creates large maintenance space. Exclusive dust-proof layer and sealed articulated points make the loader more durable.
Model | LT03J LOG LOADER | LT12J Dual Rocker arm |
Operating weight | 10,100 KG | 25,500kgs |
Engine model | WEICHAI WD10G270E201 | WEICHAI WD10G270E201 |
Rated engine power | 92KW | 199KW |
Rated rotate speed | 2200r/min | 2200r/ min |
Max. torque | 500KN | 1100KN |
Max. Traction force | ≥205KN | ≥205KN |
Breakout force | ≥230KN | ≥230KN |
Max. lifting height | 3,900 mm | 3,900 mm |
Rated load | 3,000 KG | 12,000kgs |
Max. load | 3,000 KG | 15,000kgs |
NO. of shifts | F:4, R:2 | F:4, R:2 |
Transmission | Countershaft | Countershaft |
Torque converter | Model: YJ375X3 Ratio: 3.166 | Model: YJ375X3 Ratio: 3.166 |
Driving speed | ||
Forward/ Reverse | 0-8.5km/h | 0-8.5km/h |
Forward/ Reverse Ⅱ | 0-16.5km/h | 0-16.5km/h |
Forward Ⅲ | 0-25km/h | 0-25km/h |
Forward IV | 0-30km/h | 0-42km/h |
Grade ability | 28° | 28° |
Turning angle | 35°±1° | 35°±1° |
Overall length | 7950 | 8500mm |
Overall width | 2250mm | 3130mm |
Overall height | 3220mm | 3650mm |
Wheelbase | 2850mm | 3550mm |
Track base | 1800 | 2510mm |
Minimum ground clearance | 450mm | 680 mm |
Raise time | ≤6.8s | ≤8.5s |
Cycling time | 14s | 14s |
Fuel Tank | 180L | 300L |
Hydraulic tank | 180L | 280L |
Tire type | 26.5-25 Front rail tire, Rear Nylon tire | 26.5-25 Front rail tire, Rear Nylon tire |
Details 1

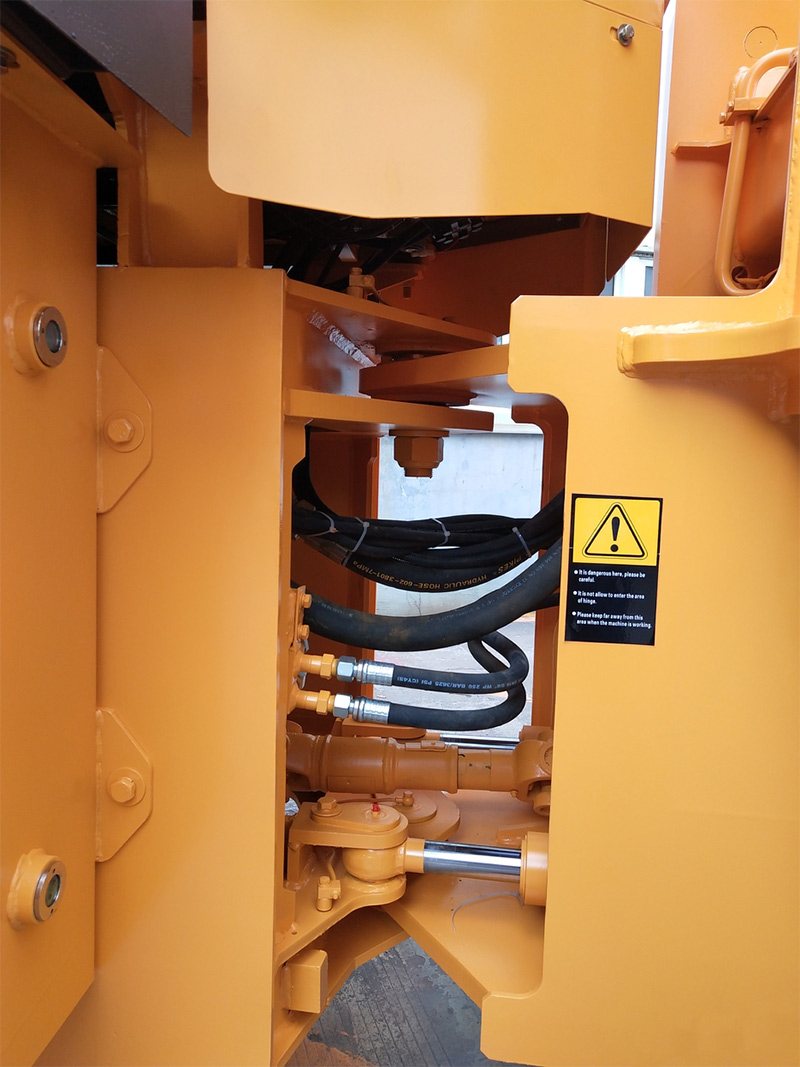

JOOMACH uniquely designed hydraulic pipeline layout, the layout of hydraulic pipelines is reasonable, and the whole row is beautiful, reducing the energy loss of the hydraulic system and providing efficiency.
Details 2

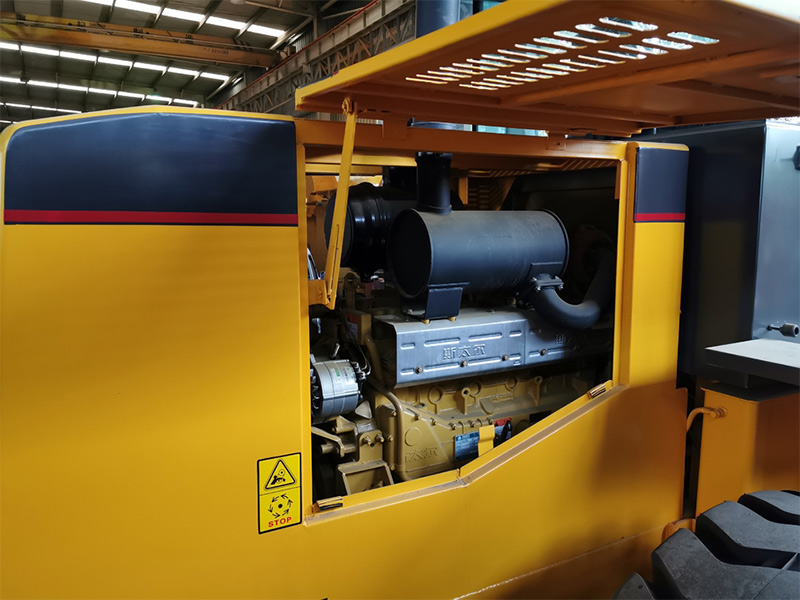

Ide-opening hood Makes servicing and maintenance of engine easier. The large distance between up and down articulated boards creates large maintenance space.
Details 3

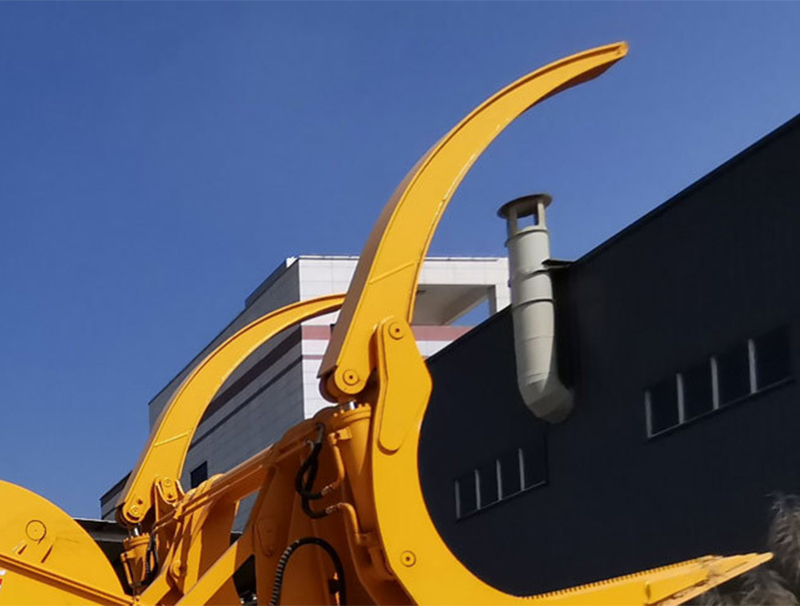

The fork can be 90 degrees vertical, which makes it easy to load and unload the wood log from the truck.
Details 4

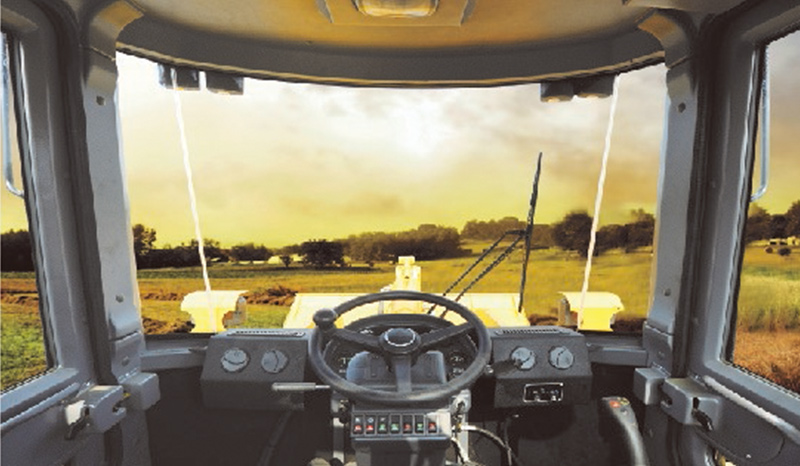

Luxury driver’s cabin, more space, wider visual field.
T03J is an important piece of equipment in the construction of engineering machinery, which is widely distributed in ports, lumberyards, wood processing plants, etc.
