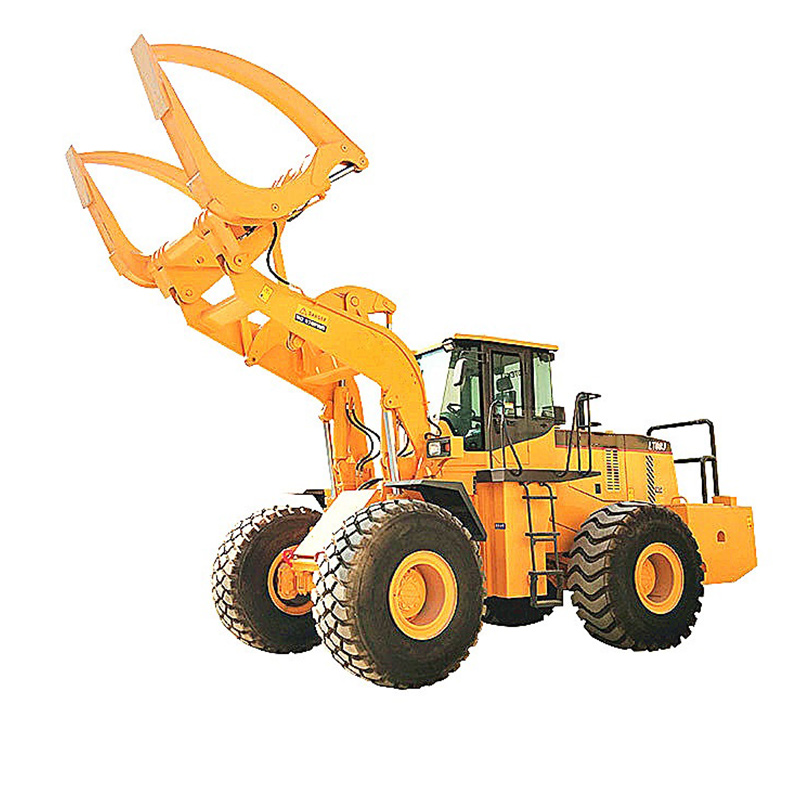

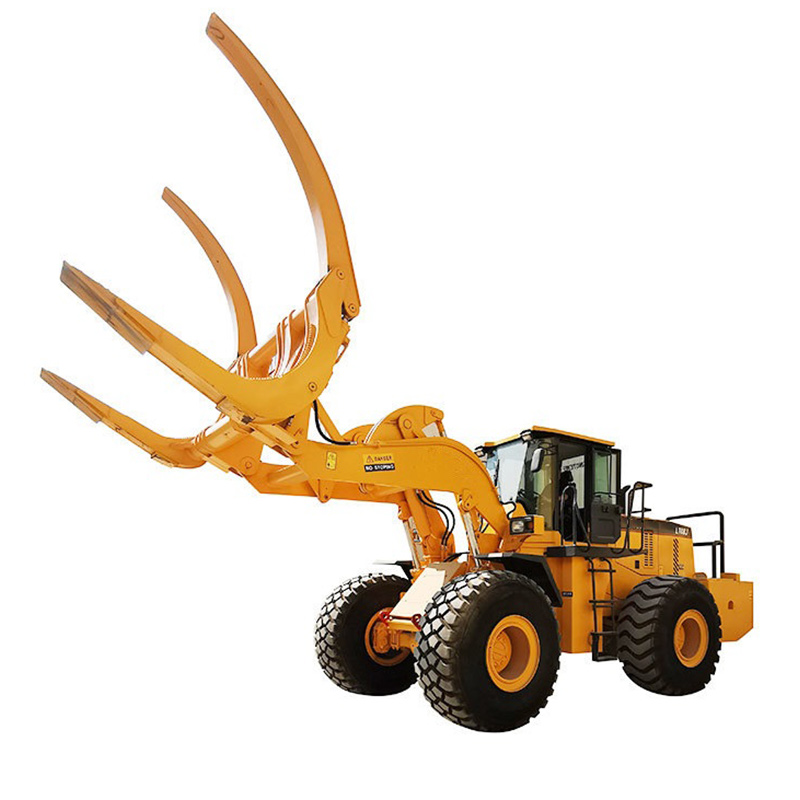

Wheel log loader (referred to as the log loader) is an important piece of equipment in the construction of engineering machinery and is widely used in the loading and unloading of timber in ports, lumber yards, and wood processing plants.
Inquiry1.Frame:
Same design and dimensions with Japanese Komatsu 470 loader, thicken hinge plate makes the loader more durable and efficient. The thickness of the lifting arm is 60mm, the thickness of the hinge pin is 80mm much stronger than normal loaders.

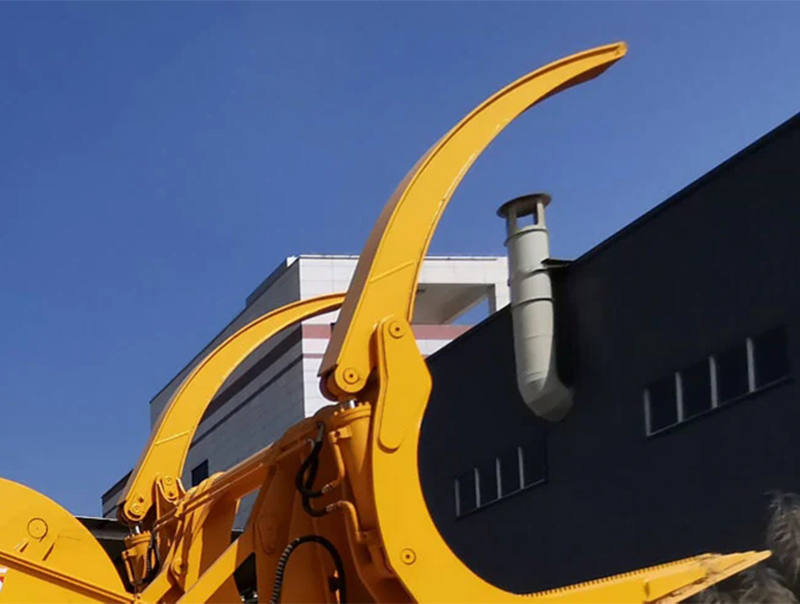

Quenched integral Anti-wear grapple is made in Japan. Specially designed for the heavy log, effectively prevent any break, prolongs the grapple’s life to a great extent.
Chinese Beilian advance gearbox with Caterpillar technique transmission. The powerful electronic control countershaft transmission is easy to maintain, superior in efficiency delivery, and overload adaption.
2.Brake systems:
Four-wheel double-line caliper disc braking system with a gas container in the back as well as our exclusive auto cooling technology on brake system double assures reliability and safety. The rearview camera and ROPS/FOPS cab are optional.

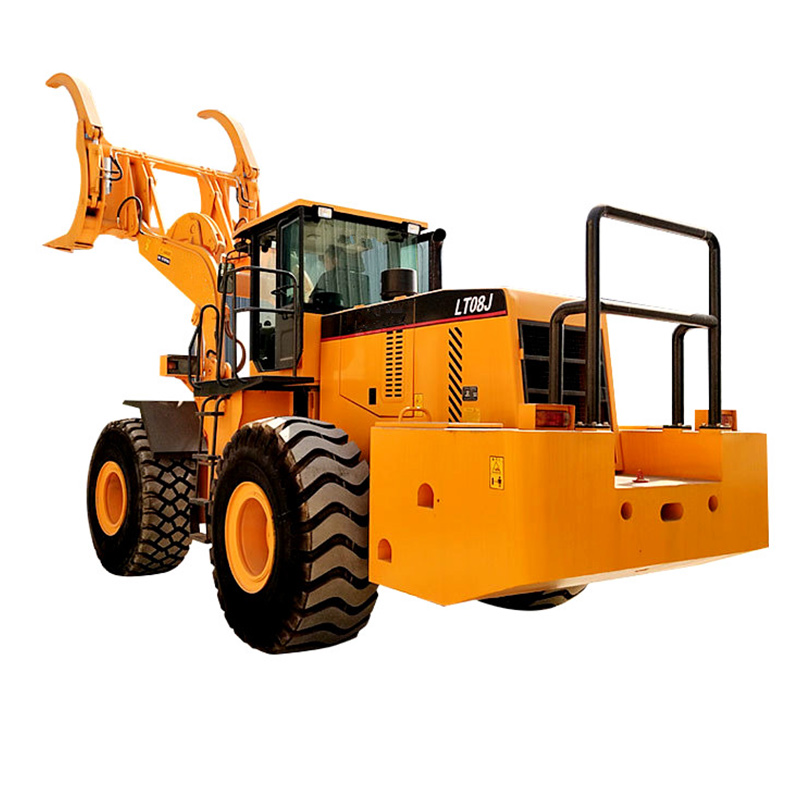

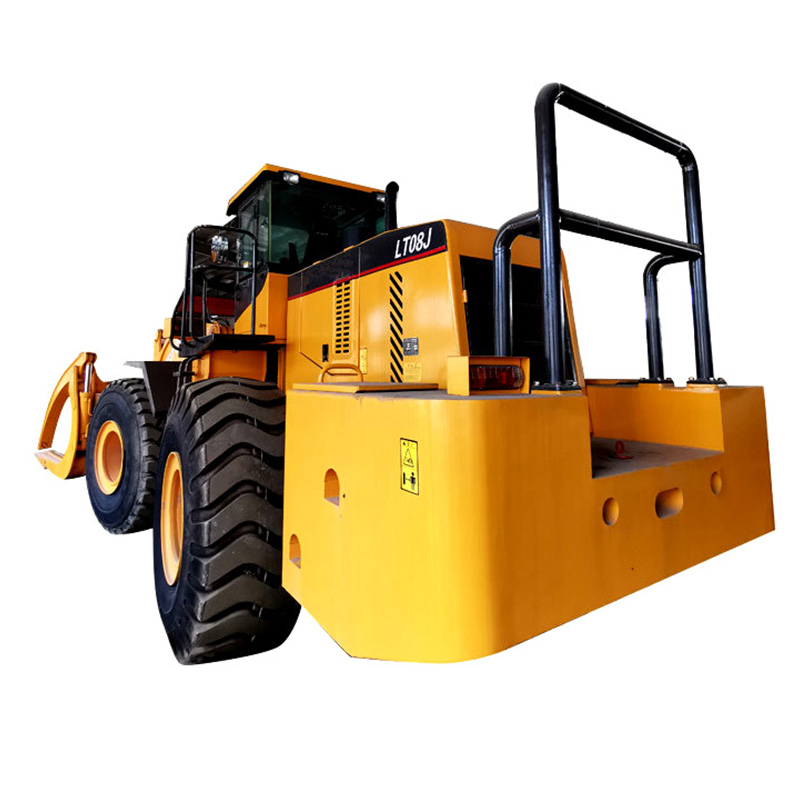

The heavier counterweight, long wheelbase, heighten ground clearance ensure that the machine could adapt to various tough conditions.
3.Hydraulic systems:
To adopt confluence of dual-pump confluence and diffluence technology, rational use of engine power, reduce energy consumption effectively.
Independent transmission and hydraulic cooling improve the hydraulic system stability.
| Model | LT08J Single Rocker arm | Forward/Reverse | 0-8.5km/h |
| Operating weight | 19,500 kgs | Forward/Reverse | 0-16.5km/h |

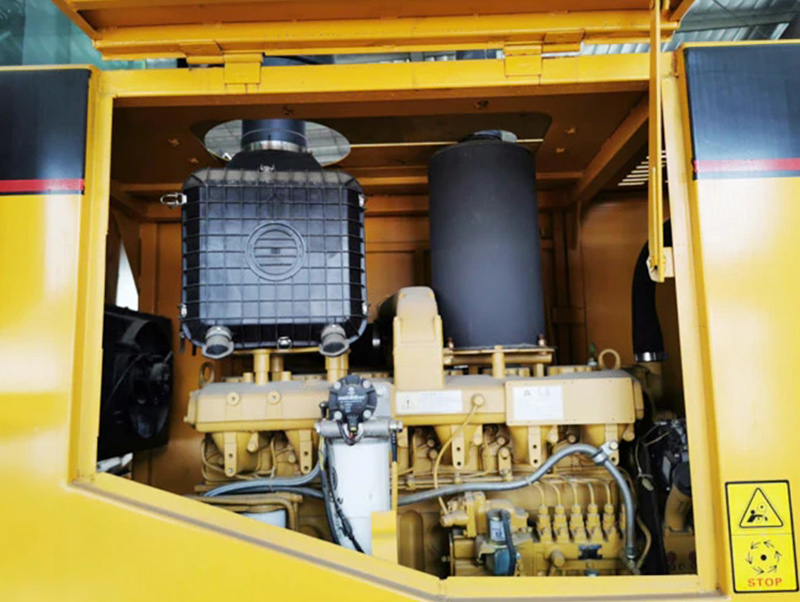

| Engine model | WEICHAI WD10G240E21 | ForwardⅢ | 0-25km/h |
| Rated engine power | 175KW | Forward IV | 0-42km/h |
| Rated rotate speed | 2200 r/min | Grade ability | 28° |
| Max.torque | 920N.m | Turning angle | 35°±1° |
| Max. Traction force | ≥180KN | Overall length | 8380mm |
| Breakout force | ≥200KN | Overall width | 2980mm |
| Max. lifting height | 3,800 mm | Overall height | 3560mm |
| Rated load | 8,000 kgs | Wheel base | 3350mm |
| Max. load | 10,000 kgs | Track base | 2360mm |
| NO.of shifts | F4, R2 | Minimum ground clearance | 520mm |
| Transmission | Countershaft | Raise time | ≤7.5s |
| Torque converter | Model YJ375X3 | Cycling time | ≤12.5s |
| Ratio | 3.166 | Fuel Tank | 230L |
| Hydraulic tank | 270L | ||
| Tire type | 26.5-25 |
Details 1

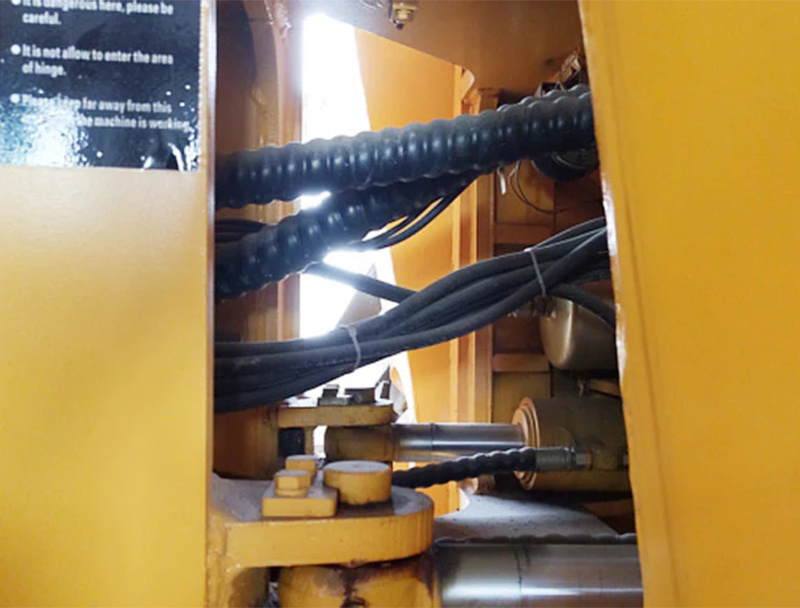

JOOMACH uniquely designed hydraulic pipeline layout, the layout of hydraulic pipelines is reasonable, and the whole row is beautiful, reducing the energy loss of the hydraulic system and providing efficiency.
Details 2
JOOMACH’s self-made high-reliability reinforced front and rear axles increase the anti-overload capability by 50% and the anti-torsion capability by 20%. They also add brake disc protection plates to protect the braking system.
Details 3
JOOMACH exclusive custom loader tires, high reliability, endurable, and more overload capacity.
Details 4

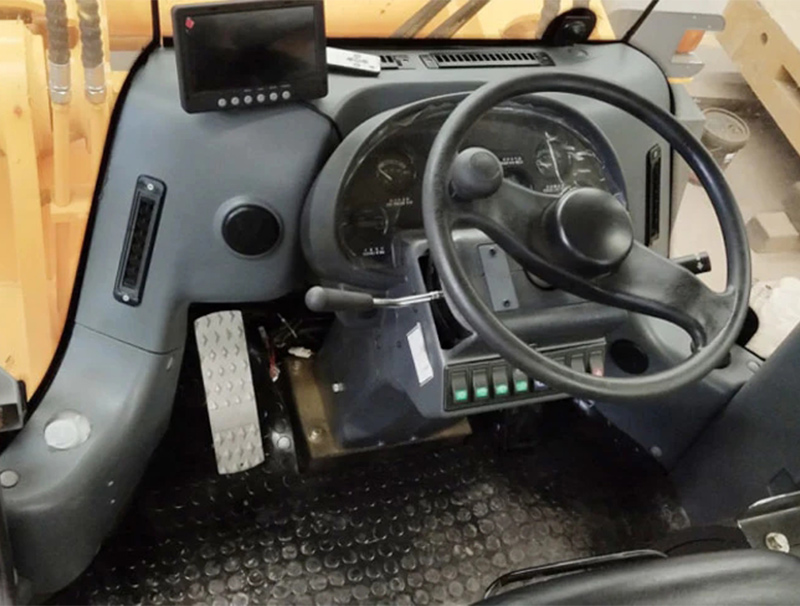

Luxury driver’s cabin, more space, wider visual field.
Application and after-sales service
LT08J is an important piece of equipment in the construction of engineering machinery, which is widely distributed in ports, lumberyards, wood processing plants, etc.
