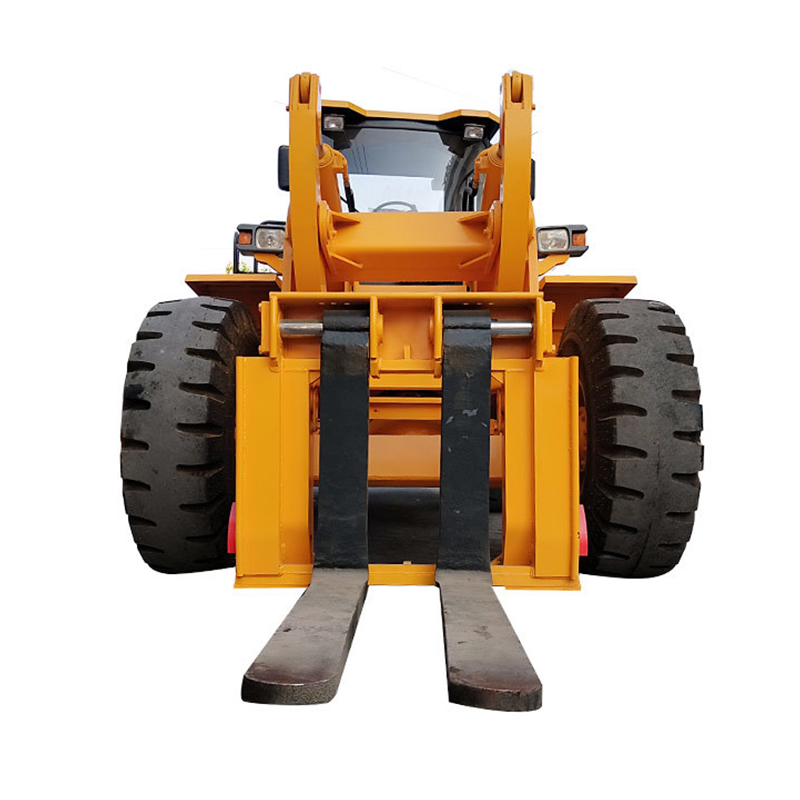

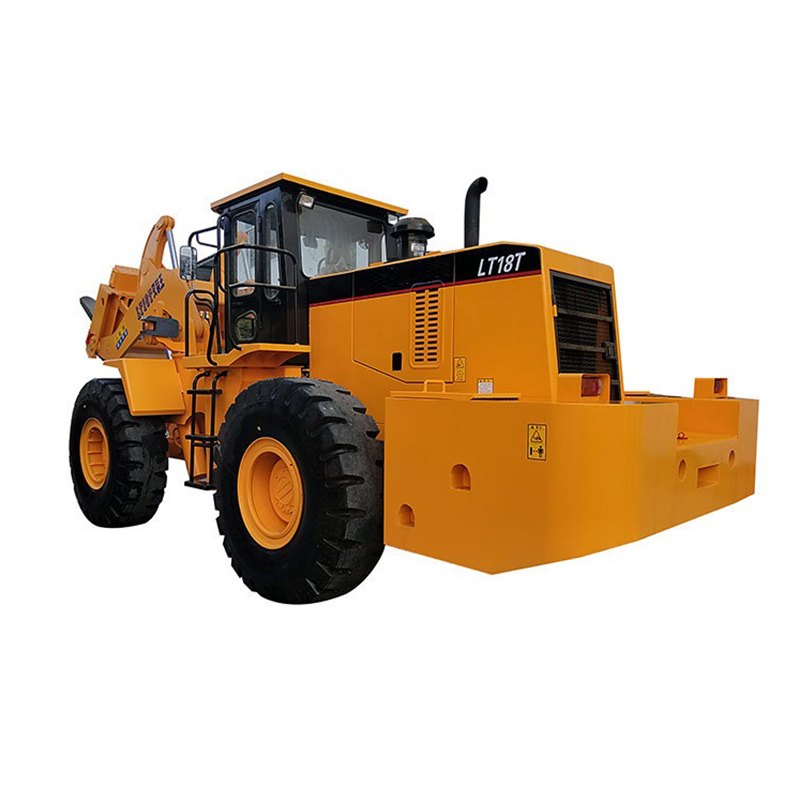

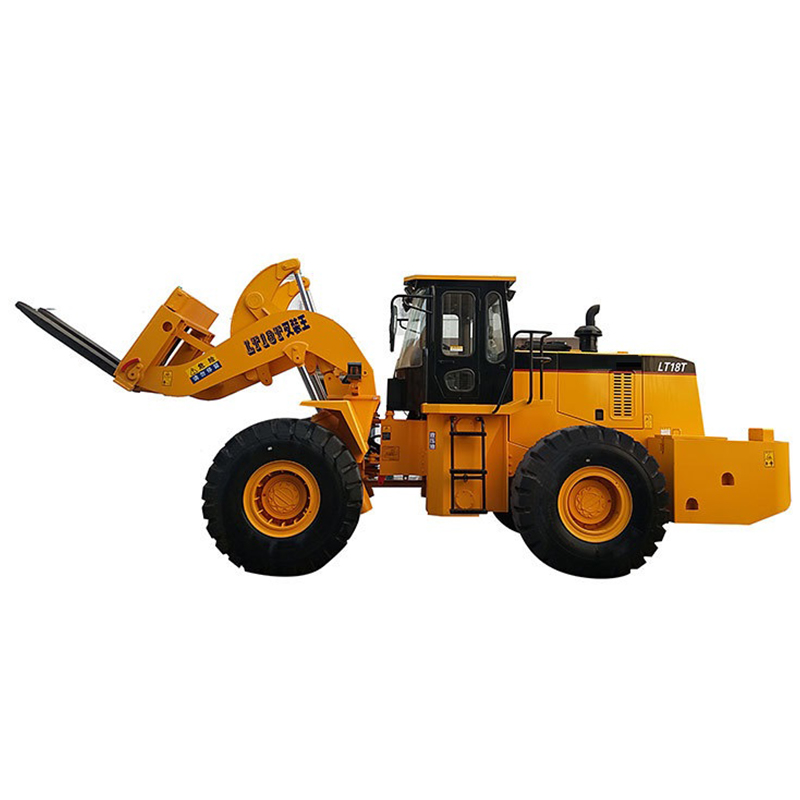

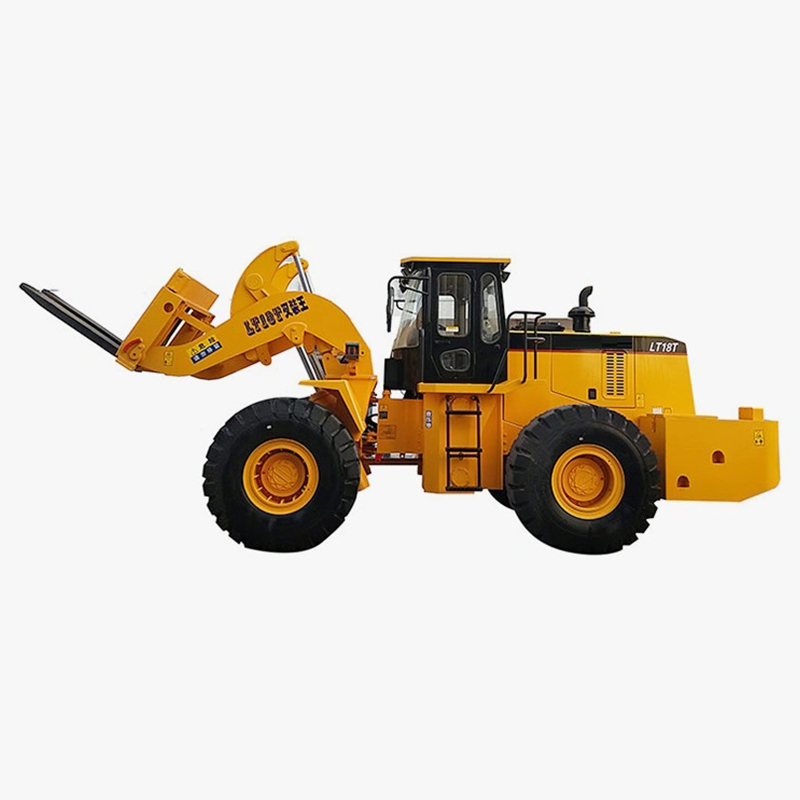

18 Ton Block Forklift Wheel Loader for Stone Mining LT18T is LT18T Double Tilt Lever Forklift Loader.
Forklift loaders are mining stone operation equipment for earthmoving machinery and are also widely used in the operation of terminal block logistics.
Inquiry1.Brake systems: Four-wheel double line caliper disc braking system with a gas container in the back to ensure safety and reliable operation.
2.Powerful engine: Weichai low rated rotate speed Engine strong power, energy conservation and environmental. The strong structure increases the total weight of machinery improving the quality and durability.
3.Optional: bucket tire protection chain brake system automatic constant temperature cooling system air conditioning tires, joystick.
4.Machine: short wheelbase design, flexible operation, high efficiency.
| MODEL | UNIT | LT16T/LT18T | |
| Rocker arm type | Single rocking arm | ||
| Operation weight | kg | 20000/21000 | |
| Rated load | tons | 16/18 | |
| Engine model | WD10G220E23 | ||
| Rated power | kw | 162 | |
| Rated output | r/min | 2000 | |
| Maximum torque | N. m | 745.3 | |
| Maximum grade ability | ° | 20 | |
| Max. Turning angle | ° | 35±1 | |
| Lifting, dumping, and lowering | s | 13.5 | |
| Max. dumping height | mm | 3300 | |
| Wheelbase | mm | 3230 | |
| Track base | mm | 2300 | |
| Overall Length | mm | 8000 | |
| Overall Width | mm | 2870 | |
| Overall Height | mm | 3220 | |
| Travelling speeds | Forward 1 | km/h | 0 11.5 |
| Forward 2 | km/h | 0 36 | |
| Forward 3 | km/h | ||
| Forward 4 | km/h | ||
| Reverse 1 | km/h | 0 16 | |
| Reverse 2 | km/h | ||
| Fork dimension | mm | 1500x200x100 | |
| Tires specification | 23.5 25 (24 levels) | ||
Details 1

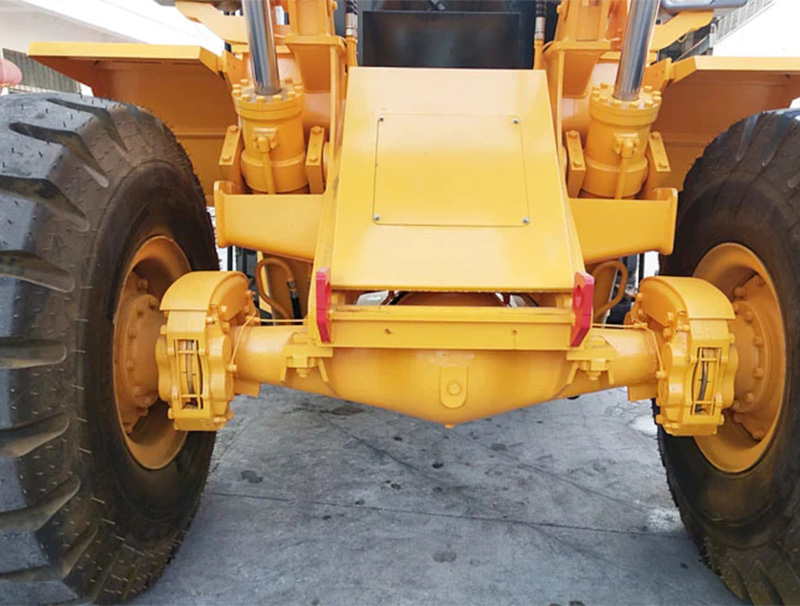

Brake calipers add protection.
Details 2

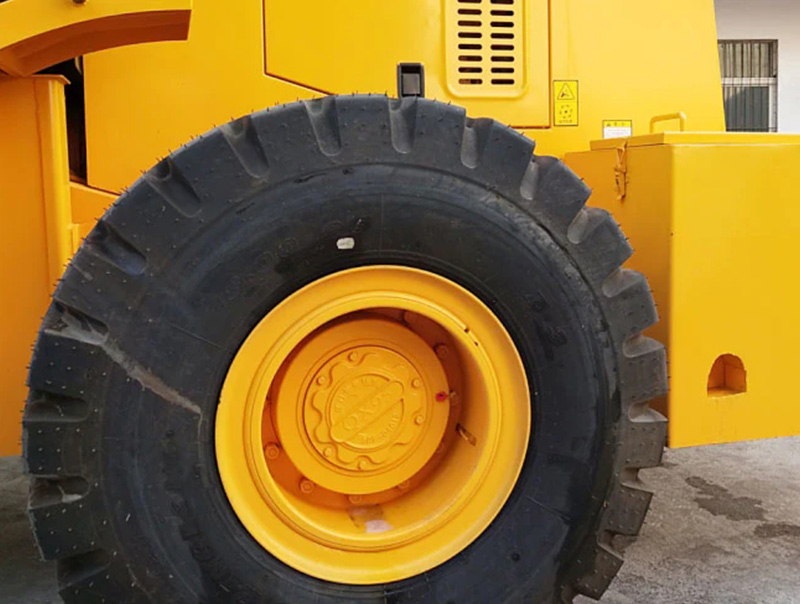

JOOMACH special reinforced rims and quarry-specific tires have stronger carrying capacity, higher reliability, and longer life.
Details 3

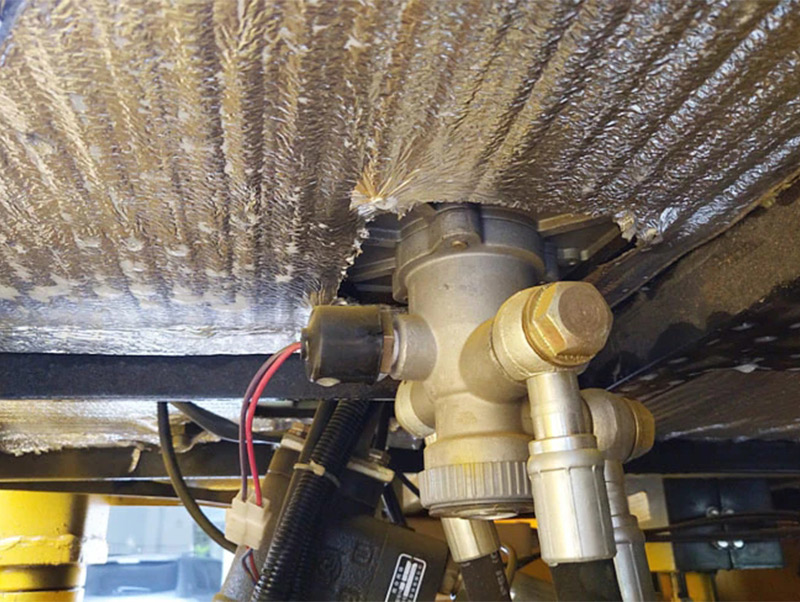

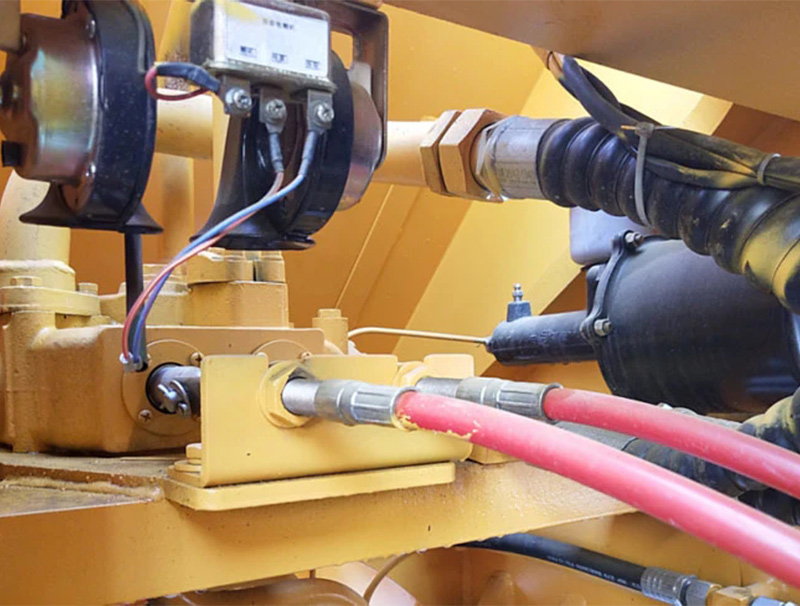

JOOMACH uniquely designed hydraulic pipeline layout, the layout of hydraulic pipelines is reasonable, and the whole row is beautiful, reducing the energy loss of the hydraulic system and providing efficiency.
Details 4
Luxury CAB, noise isolation, and vibration absorber meet all kinds of operation, which can be dismantled for large space.
18-ton block forklift wheel loader LT18t application and after-sales serviceLT18T is mining stone operation equipment for earthmoving machinery and is also widely used in the operation of terminal block logistics.
