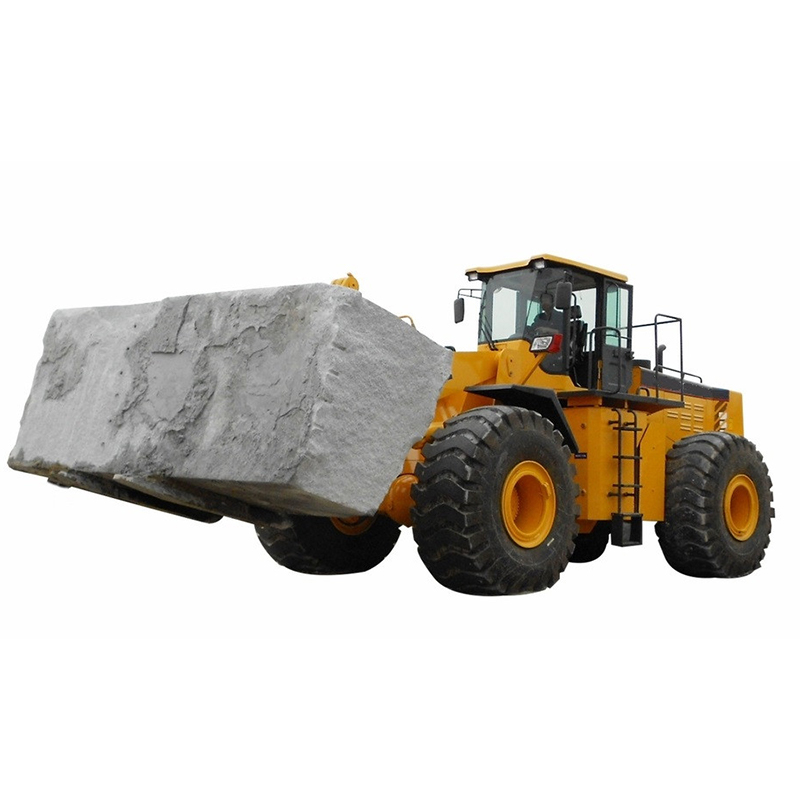

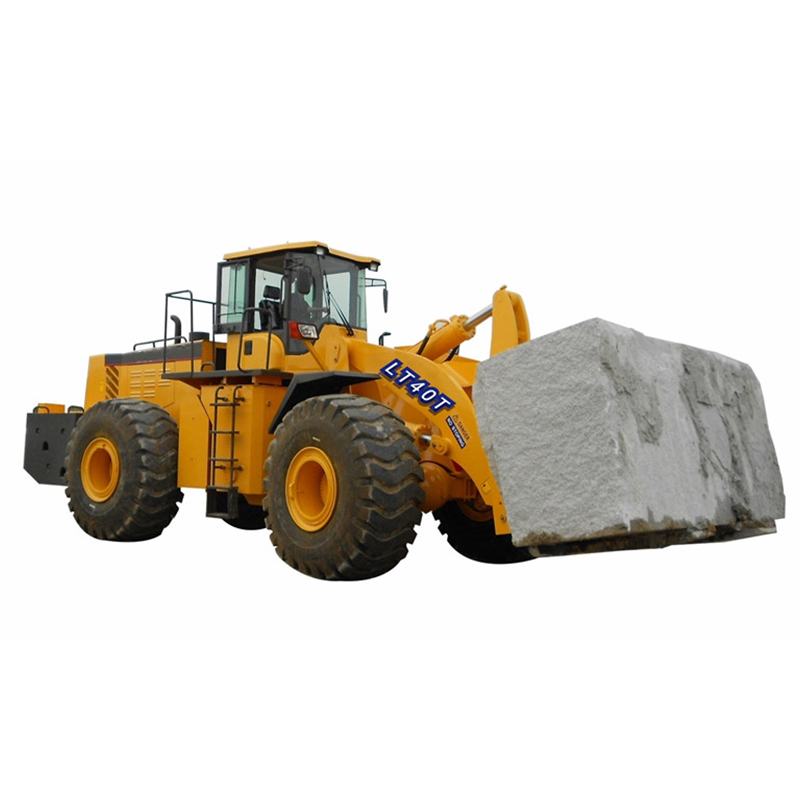

Forklift loaders are mining stone operation equipment for earthmoving machinery and are also widely used in the operation of terminal block logistics. Its rated load is 40ton, rated power is 247kw, operating weight is 39.6ton.
Inquiry1.Steering system:
Increase the steering cylinder, octagonal cylinder arrangement design, improve the steering stability of the vehicle.
2.Humanized design:
With joystick, professional air conditioning, Cab heightening design creates a comfortable operating environment.
3.Powerful engine:
Weichai Engine, strong power, energy conservation, and environmental protection. Cummins engine, Shangchai engine is optional. Stone-specific design.
4.Machine:
Super long-wheelbase design, increased weight of counterweight and greater steering cylinder to improve the vehicle longitudinal stability, to ensure that the homework load balance, to realize the effective improve the quality of the goods is more reliable, longer product life.
5.Safety:
Designed the CTCS (Constant temperature cooling system). The brake system adopts a constant temperature cooling device with independent research and development patent technology to ensure stable, safe, and reliable braking.
6.Structural parts:
The comprehensive steel plate is thickened, the height of the chassis off the ground, and the departure angle is increased and it is suitable for various harsh environments. It is easier to mine the materials and stabilize the operation. The double rocker arm structure produces a larger excavation force, and the Z-form structure specially designed for stone working conditions has a strong bearing capacity.
7.Hydraulic systems:
To adopt confluence of dual-pump confluence and diffluence technology, rational use of engine power, reduce energy consumption effectively. Independent transmission and hydraulic cooling mp improve the hydraulic system stability.
8.CAB:
With the broad view, noise-isolation and vibration absorber meet all kinds of operation, which can be dismantled for large space. Radio with MP3 function and speaker, the joystick control system (Optional) ensure easy operation and more comfortable.
| Unit | LT40T | |
| Tilt lever type | Single tilt lever | |
| Operation Weight | kg | 39600 |
| Rated load | ton | 40 |
| Engine model Op | WD12G336E221 | |
| Rated power | kw | 247 |
| Rated speed | r/min | 2200 |
| Max. torque | N. m | 1350 |
| Max. grade ability ht | ° | 25 |
| ax. Turning angle M | ° | 35±1 |
| Lifting, dumping, and lowering | s | 19.7 |
| Max. dumping height | mm | 3300 |
| Wheelbase | mm | 4200 |
| Track base Torque converter | mm | 2750 |
| Overall Length | mm | 10180 |
| Overall Width | mm | 3450 |
| Overall Height | mm | 3900 |
| Traveling speed | ||
| Forward 1 | km/h | 0-6.5 |
| Forward 2 | km/h | 0-9 |
| Forward 3 | km/h | 0-20.5 |
| Forward 4 | km/h | 0-36.5 |
| Reverse 1 | km/h | 0-6.5 |
| Reverse 2 | km/h | 0-9 |
| Fork dimension | mm | 1700x350x150 |
| Torres specification | 29.5-25/29.5R25 | |
Details 1

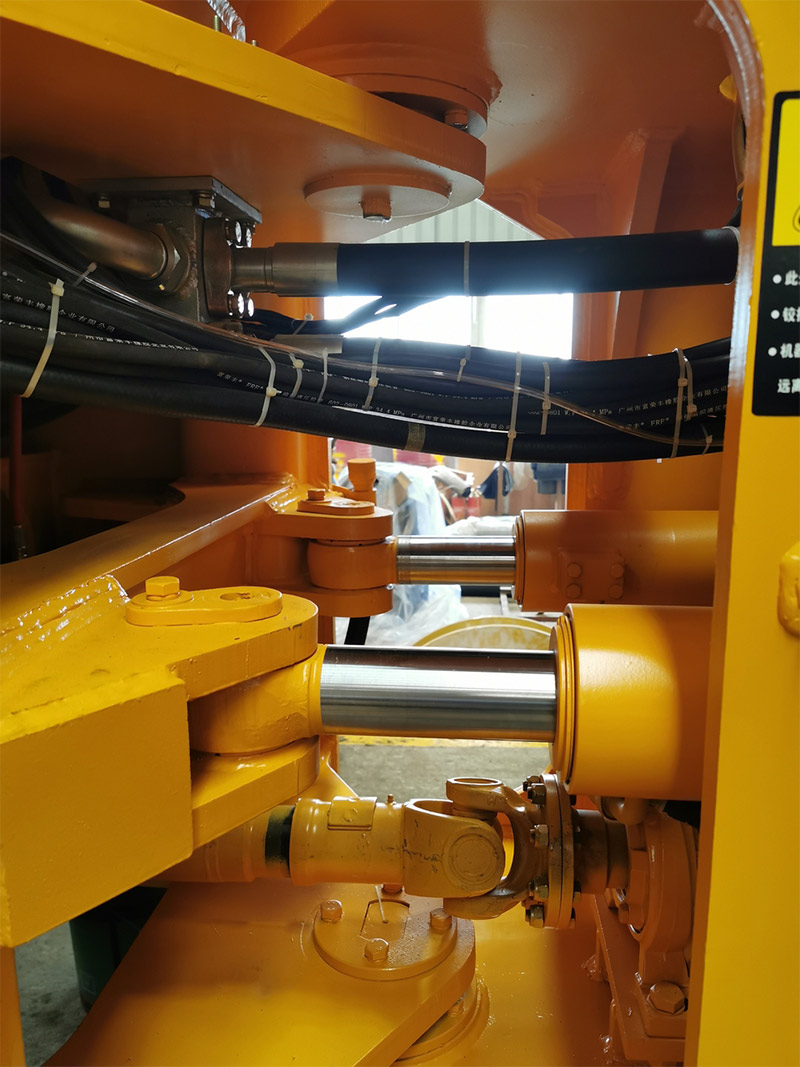

JOOMACH uniquely designed hydraulic pipeline layout, the layout of hydraulic pipelines is reasonable, and the whole row is beautiful, reducing the energy loss of the hydraulic system and providing efficiency.
Details 2

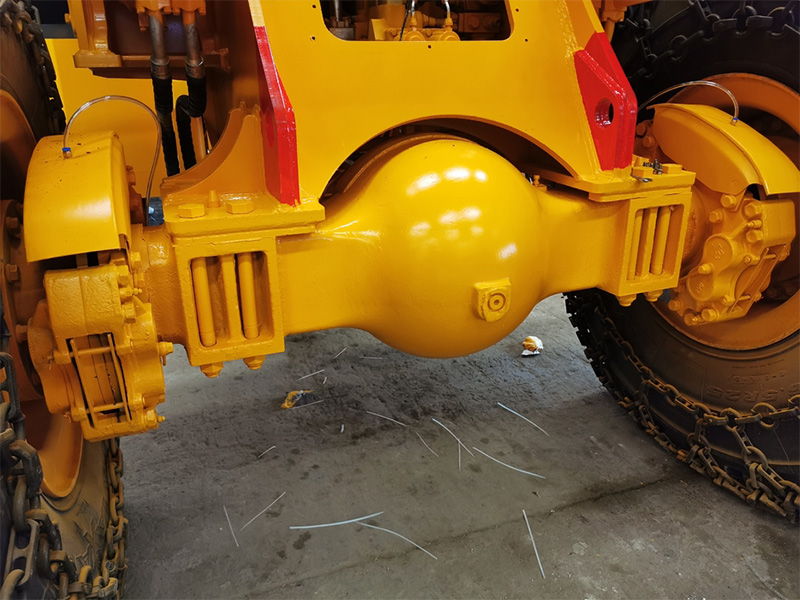

JOOMACH’s self-made high-reliability reinforced front and rear stone mining axles increase the anti-overload capability by 50% and the anti-torsion capability by 20%. They also add brake disc protection plates to protect the braking system.
Details 3

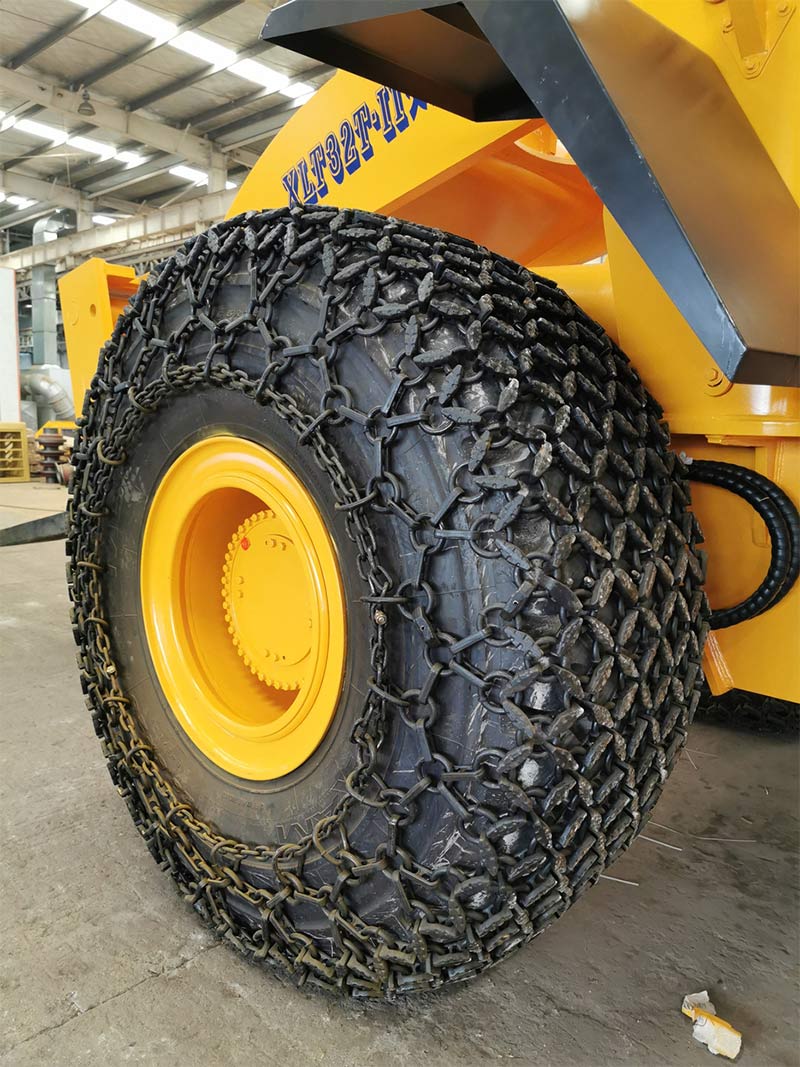

JOOMACH exclusive custom loader tires, high reliability, endurable, and more overload capacity.
Details 4

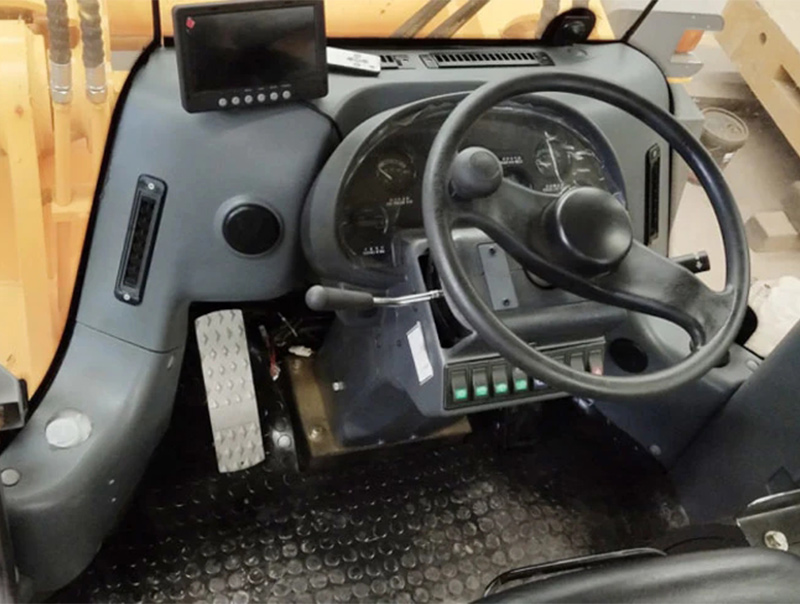

Luxury driver’s cabin, more space, wider visual field.
Application and after-sales serviceLT40T forklift loaders are mining stone operation equipment for earthmoving machinery and are also widely used in the operation of terminal block logistics.
