Excavator, known as excavating machinery, is also an earthmoving machine that uses buckets to dig materials over or under the bearing surface and load them into transport vehicles or to the stockyard.
The materials excavated by the excavator are mainly soil, coal, sediment, and pre-loose soil and rock. Judging from the development of construction machinery in recent years, the development of excavators is relatively fast. Excavators have become one of the most important construction machinery in engineering construction. The three most important parameters of an excavator are operating weight (mass), engine power, and bucket capacity.
InquiryIndustry-leading performance and productivity
The combination of a newly improved engine and a redesigned driven hydraulic system with an attractive cost-performance ratio is unrivalled by any other hydraulic excavator in its class
Durability & stability
Manufactured with surprisingly strong materials and structures, the LT830-7 is unrivalled in durability and safety, allowing it to pass rigorous performance tests under extreme conditions. Whenever you work in a tough environment, you can count on JOOMACH’s LT830-7.
Easy maintenance
Short maintenance operations at long intervals increase the machine’s availability onsite at all times. JOOMACH has developed the LT830-7 to deliver even higher profitability to the customer.
Safe & comfortable
More space, wider visibility, better air conditioning, and a very comfortable seat – all these elements allow the operator to work safely and comfortably for long hours in the best possible conditions.
| MODEL | LT830-7 | ||
| DESCRIPTION | Unit | ||
| Basic parameter | Bucket capacity | m³ | 0.63-1.75 |
| Operating Weight | t | 29.6 | |
| Engine | Firm | Doosan/ISUZU | |
| Engine | Model | DE08/6HK1 | |
| Rated power/speed(Net) | kW/(r/min) | (147/1900)/(190/1900) | |
| Working range parameters | Boom | mm | 6245 |
| Arm | mm | 2500 | |
| Maximum digging Radius | mm | 10155 | |
| Maximum Digging Depth | mm | 6275 | |
| Maximum Vertical digging depth | mm | 6505 | |
| Maximum digging height | mm | 9885 | |
| Maximum dumping height | mm | 6960 | |
| Performance parameters of the whole machine | Max. excavating force (arm/bucket) | kN | (155.8/164.6)/(188/199.9) |
| Swing Speed | r/min | 10.1 | |
| Travel Speed (high/low) | km/h | 5.0/3.0 | |
| Grading capacity | °/ % | 35°/70% | |
| Noises at driver location | dB(A) | 77 | |
| Overall dimensions | Transport Length | mm | 10620 |
| Transport Width | mm | 3200 | |
| Transport Height | mm | 3365 | |
| Cab Height | mm | 3065 | |
| Length of Shoe | mm | 4010 | |
| Track Gauge | mm | 2600 | |
| Shoe width | mm | 600 | |
| Minimum Tail Swing Radius | mm | 3200 | |
JOOMACH excavator is widely used in industrial and civil building construction and construction, transportation, water conservancy, and power engineering, mining, gardening, urban construction, cable laying construction, farmland use, and pipeline excavation, and buried, and mechanized construction in modern military engineering industries.

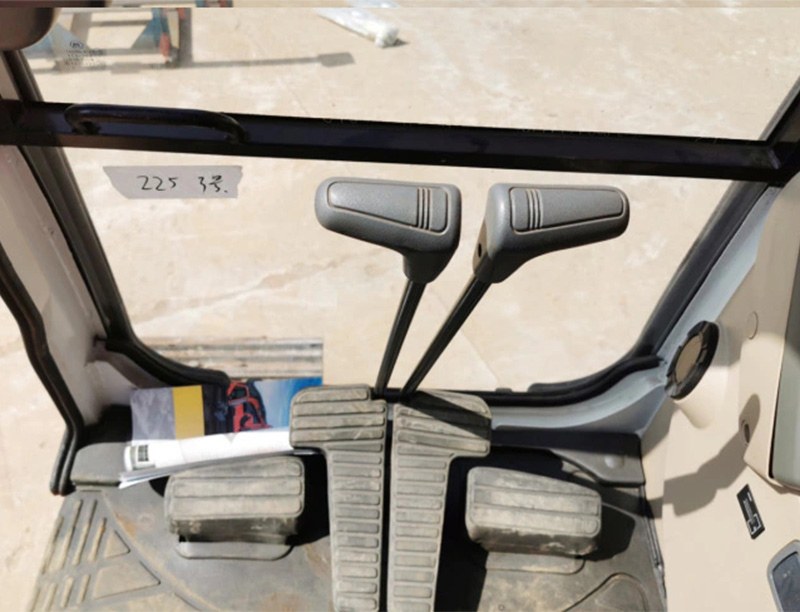

CAB
1. ROPS/FOPS(optional)
2. Removable roof window and front window
3. Emergency exit window
4. Removable windshield within cab storage bracket
5. Adjustable seat
6. Cigarette lighter
7. lcd monitor
8. Auto climate control/ac/heater/pressurize
9. Windshield wiper
10. 24v am/fm radio
11. 12v power outlet
12. Washable floor mat
13. Interior part: cup holder, interior light, hot/cold beverage compartment, storage compartment, seat with storage bag at the back

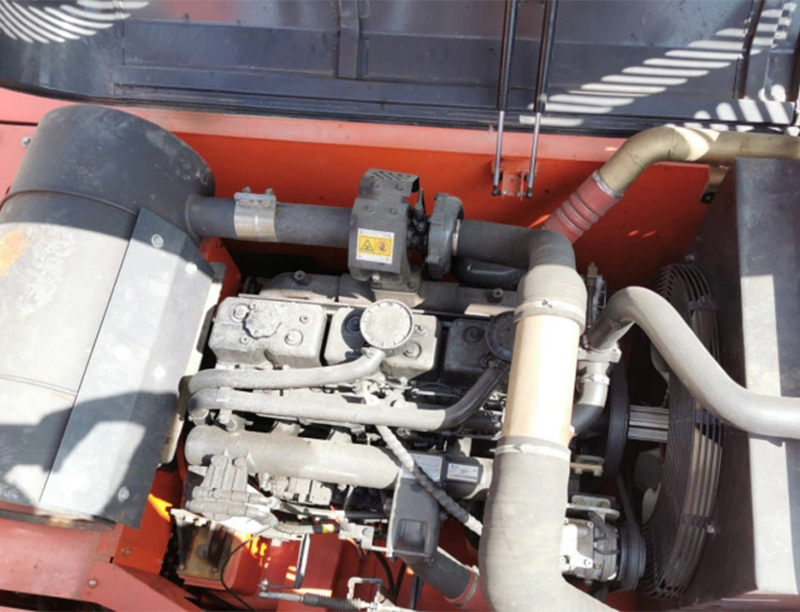

Engine
1. Tier ii engine
2. Three work modes
3. Automatic idle control system
4. Tri-stage fuel filtration
5. Alternator
6. Dual element air filter
7. Oil filter
8. Turbocharger with charge air cooler

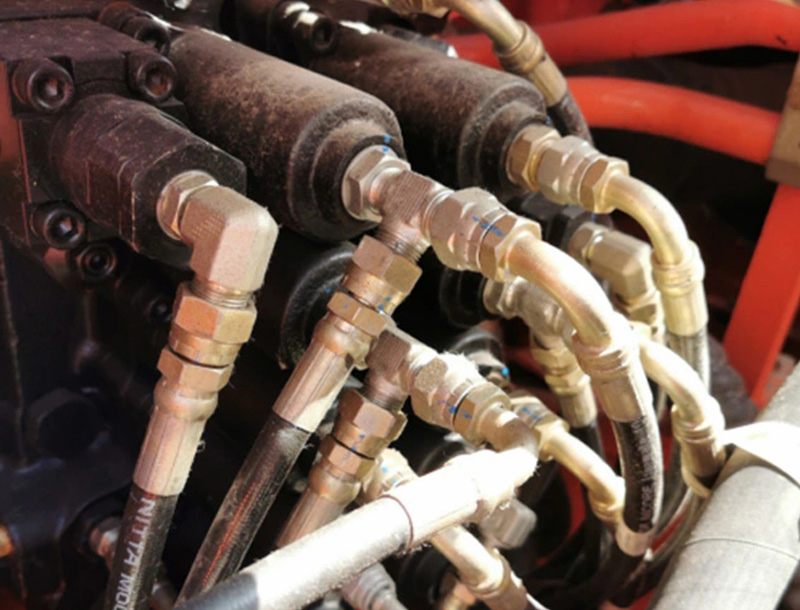

Hydraulic system
1. Power boost mode
2. Automatic two-speed travel
3. Reduced-drift valve for boom and arm
4. Reverse swing dampening valve
5. Bi-directional double-loop hydraulic system
6. Pilot operated safety check valve
7. Safety relief valve
Easy maintenance
Application and after-sales serviceLT830-7excavator is widely used in industrial and civil building construction and construction, transportation, water conservancy, and power engineering. Besides, it is also widely applied in mining, gardening, urban construction, cable laying construction, farmland use, pipeline excavation, and buried, and mechanized construction in modern military engineering industries.
