The utility model relates to a downhole loader which is suitable for short-distance loading and transportation operations in a narrow roadway and a low mining environment. However, for the special underground environment, non-common parts must be used including floor, instrument panel, seat bracket, steering mechanism, cab, electrical system and engine muffler, fire extinguishing, smoke removal device, and starting system as well as fire protection, explosion protection special treatment for gas monitoring.
Inquiry1.Durable structure
The Max. dumping height is 3400mm. Medium wheelbase design makes the loader more steady, larger dumping height, and shorter action cycling time that makes the working more efficient.
2.Large force
Single rocker Z-form reversal mechanism working device has large breakout force due to the optimization design.
3.Comfortable operating environment
The cab can be dismantled for a large space. Noise-isolation and vibration absorbers meet all kinds of operation. The Single-handle pilot control system (Optional), electronic control gearshift, and luxury chair ensure easy and comfortable operation.
4.Convenient maintenance
The pin with dustproof and the external grease fittings offer easy maintenance. Ide-opening hood Makes servicing & maintenance of the engine easier. The large distance between up and down articulated boards creates large maintenance space.
5.Rich options
Quick hitch for special needs such as the log grapple, fork, snow blade, grass fork, enlarged bucket, etc.

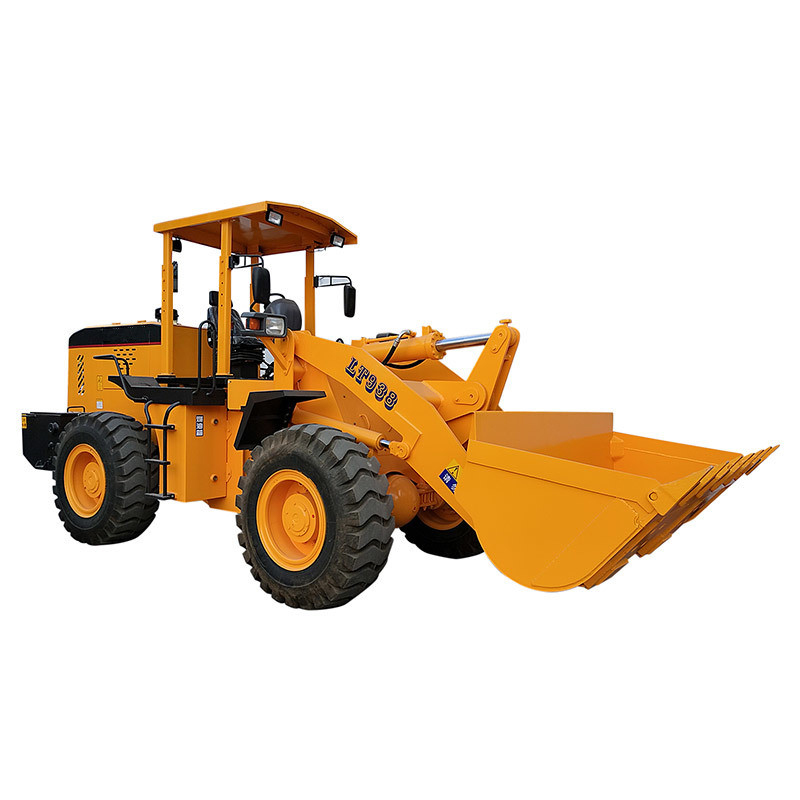

| LT938 | ||
| Base parameter | Operating weight | 11000Kg |
| Rated load | 3500Kg | |
| Bucket capacity | 2.0m³ | |
| Engine | Engine model | Weichai Deutz WP6G140E22(Tie II) |
| Rated power | 105KW | |
| Rated rotate speed | 2200rpm/min | |
| Max.torque | 540N.m | |
| Performance parameters | Breakout force | 112KN |
| Raise time | ≤6.8s | |
| Total | ≤12.5s | |
| Grade ability | ≥25° | |
| Forward I | 0-11km/h | |
| Forward II | 0-38km/h | |
| Forward III | – | |
| Forward IV | – | |
| Reverse I | 0-16km/h | |
| Reverse II | – | |
| Reverse III | – | |
| Overall dimensions | Overall length | 7640mm |
| Overall width | 2300mm | |
| Overall height | 3220mm | |
| Bucket width | 2350mm | |
| Track base | 2850mm | |
| Wheelbase | 1800mm | |
| Working range parameters | Min. ground clearance | 450mm |
| Max.dumping height | 3400mm | |
| Max. dumping reach | 1290mm | |
| Min. turning radius | ||
| Other | Transmission | |
| Tire type | 17.5-25 | |
Details-1

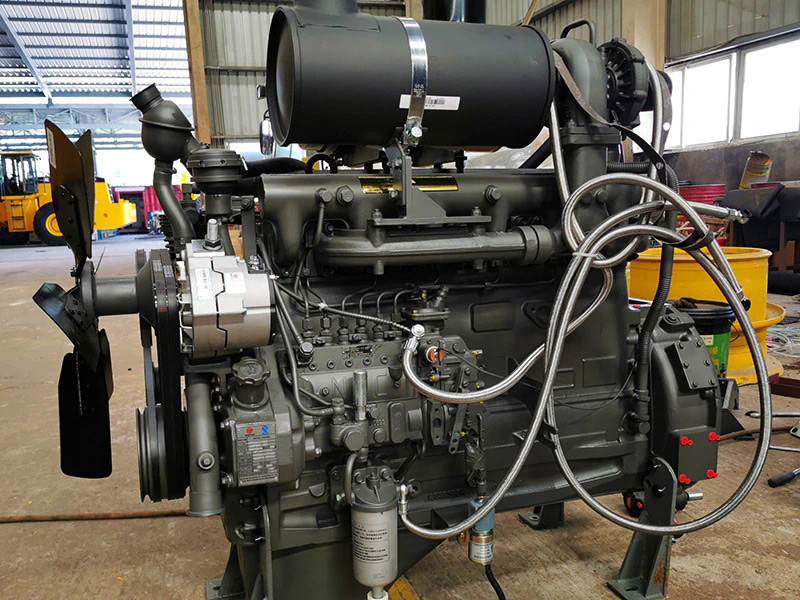

Weichai Engine, strong power, energy conservation, and environmental protection. Cummins engine and Shangchai engine are optional.
Details-2

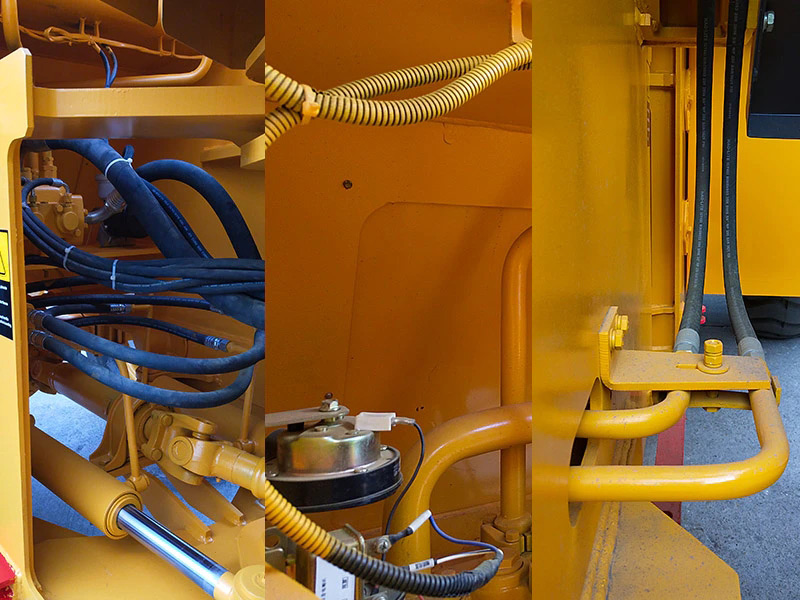

JOOMACH uniquely designed hydraulic pipeline layout, the layout of hydraulic pipelines is reasonable, and the whole row is beautiful, reducing the energy loss of the hydraulic system and providing efficiency.
Details-3

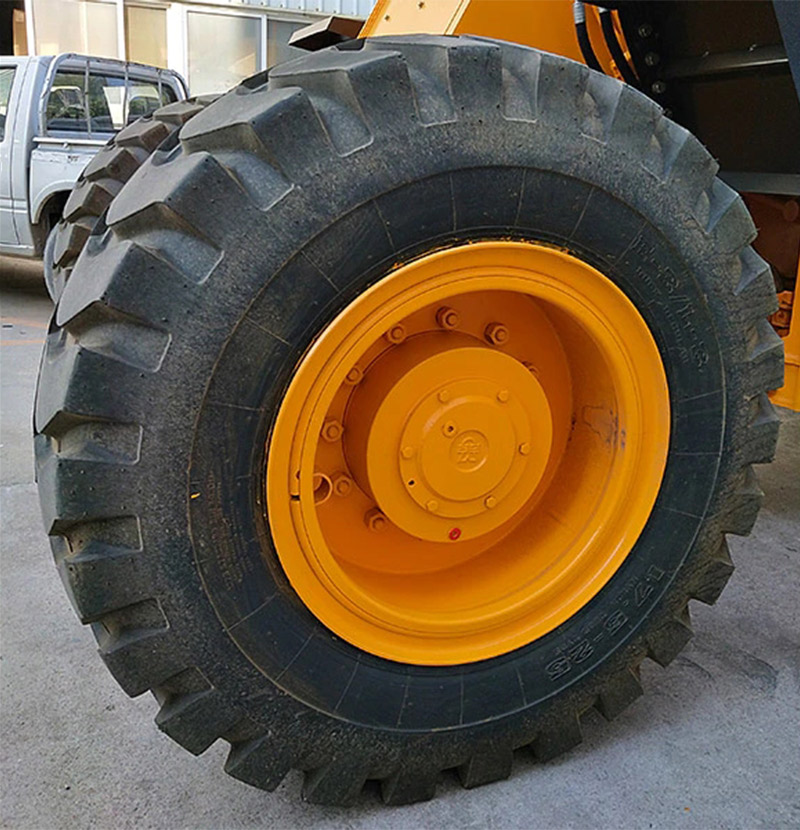

JOOMACH exclusive custom loader tires, high reliability, endurable, and more overload capacity.
Details-4

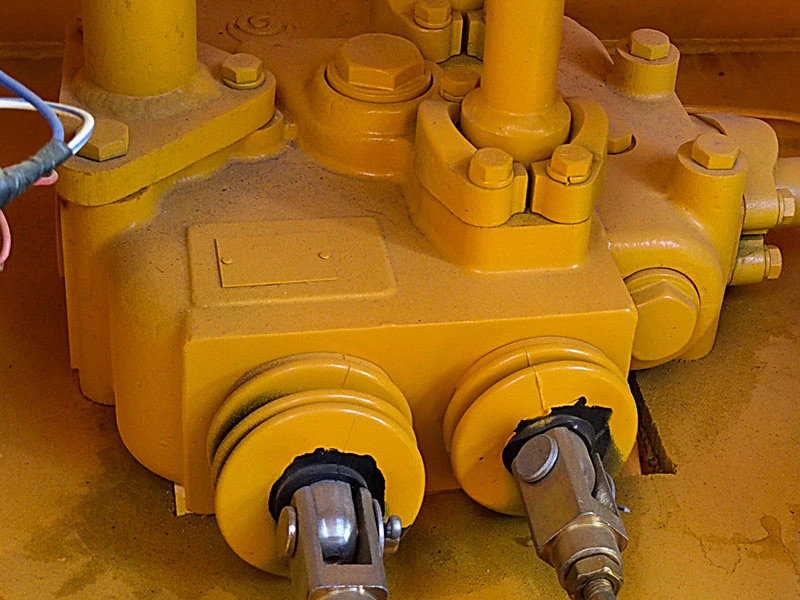

Famous brand hydraulic pump and valve, long service life, and high working efficiency.
Application and after-sales serviceLT938 is mainly used for generally underground mine loading and unloading operations for underground coal mines as well as zinc ore, iron ore, gold ore, silver ore, and copper ore mining.
