The loader is a kind of earthwork construction machinery widely used in construction projects such as roads, railways, construction, hydropower, ports, mines, etc. It is mainly used for shoveling bulk materials such as soil, sand, lime, and coal. It can also be used for ore, Use hard soil for light shoveling and digging. Different auxiliary working devices can also be used for bulldozing, lifting, and other materials such as timber loading and unloading operations.
Inquiry1. Durable Structure
The Max. dumping height is 3400mm. Medium wheelbase design makes the loader more steady, larger dumping height, and shorter action cycling time that makes the working more efficient.
2. Large force
Single rocker Z-form reversal mechanism working device has large breakout force due to the optimization design.
3. Effective operation
The five-ton planetary transmission, superior in efficiency delivery and overload adaption.
4. Comfortable operating environment
A cab can be dismantled for a large space. Noise-isolation and vibration absorbers meet all kinds of operation. The Single -handle pilot control system (Optional), electronic control gearshift, luxury chair ensure the easy and comfortable operation.
5. Convenient maintenance
The pin with dustproof and the external grease fittings offer easy maintenance. ide-opening hood Makes servicing & maintenance of the engine easier. The large distance between up and down articulated boards creates large maintenance space.
Rich Optional

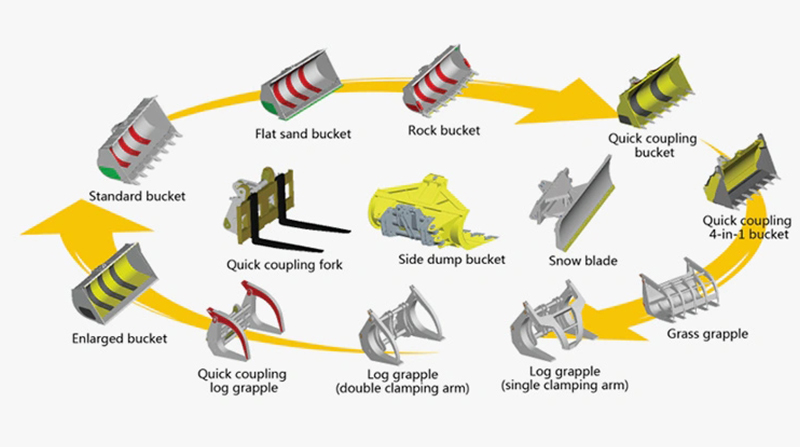

Quick hitch for special needs such as the log grapple, fork, snow blade, grass fork, enlarged bucket, etc.
Driving speed
| Base parameter | Operating weight | 11100kg |
| Rated load | 3500kg | |
| Bucket capacity | 2.0mm³ | |
| Engine | Engine model | Weichai WD10G220E21(Tie II) |
| Rated power | 105KW | |
| Rated rotate speed | 2200rpm/min | |
| Max.torque | 540N.m | |
| Performance parameters | Breakout force | 112KN |
| Raise time | ≤5.5s | |
| Total | ≤11.2s | |
| Grade ability | ≥25° | |
| Forward I | 0-11.5km/h | |
| Forward II | 0-38km/h | |
| Forward III | – | |
| Forward IV | – | |
| Reverse I | 0-11km/h | |
| Reverse II | – | |
| Reverse III | – | |
| Overall dimensions | Overall length | 7640mm |
| Overall width | 2300mm | |
| Overall height | 3220mm | |
| Bucket width | 2350mm | |
| Track base | 1800mm | |
| Wheelbase | 2850mm | |
| Working range parameters | Min. ground clearance | 450mm |
| Max.dumping height | 3400mm | |
| Max. dumping reach | 1290mm | |
| Min. turning radius | ||
| Other | Transmission | Planetary |
| Tire type | 17.5-25PR |

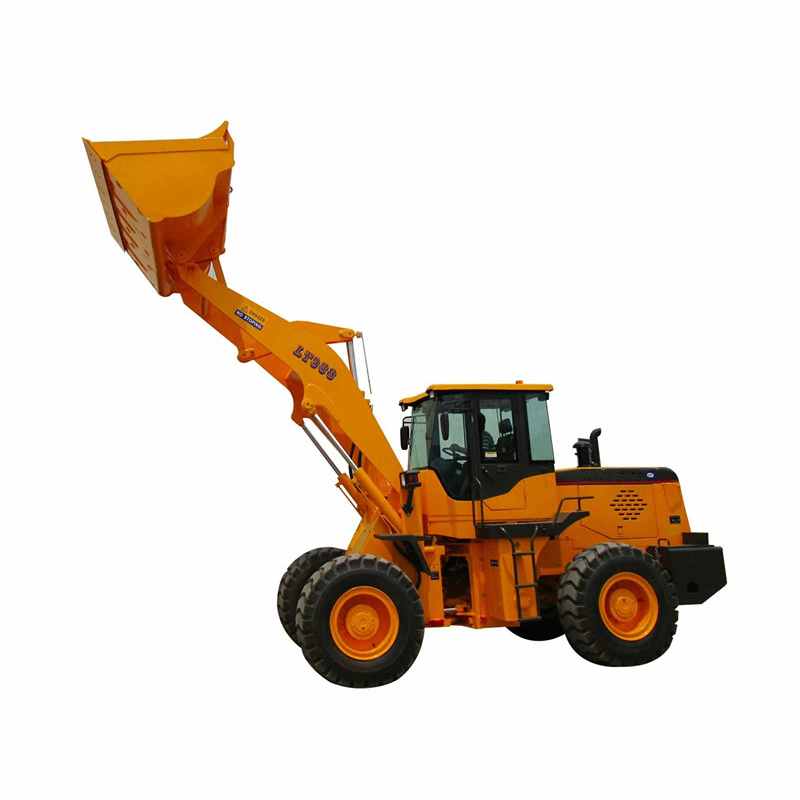

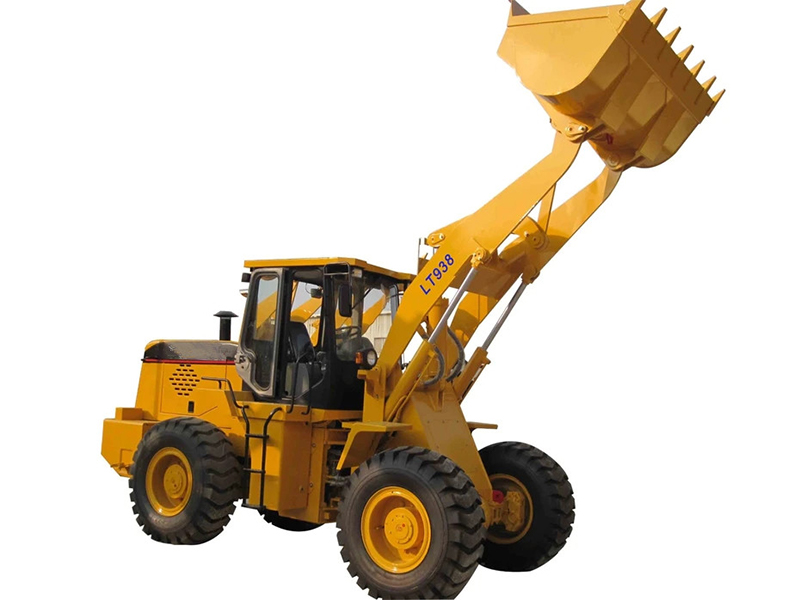

LT938 is more suitable in quarry, mine or sand factories, or other heavy construction for loading or dumping materials.
Because it is flexible
