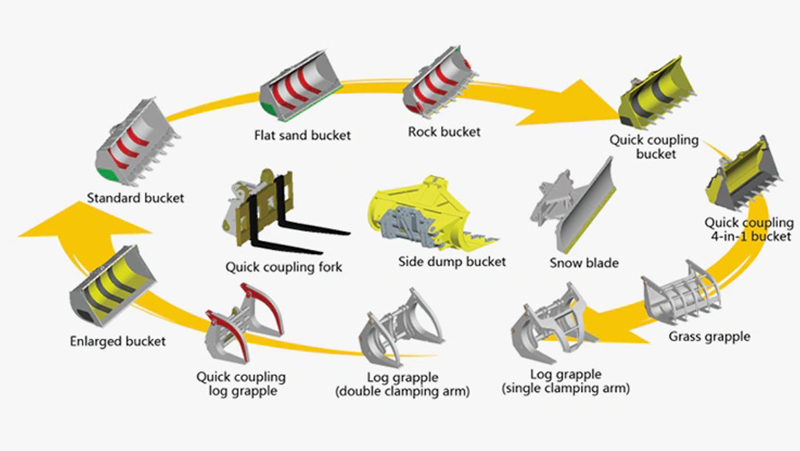

The loader is a kind of earthwork construction machinery widely used in construction projects such as roads, railways, construction, hydropower, ports, mines, etc. It is mainly used for shoveling bulk materials such as soil, sand, lime, and coal. It can also be used for ore, Use hard soil for light shoveling and digging. Different auxiliary working devices can also be used for bulldozing, lifting, and other materials such as timber loading and unloading operations.
InquiryAdopts single rocker arm, long-wheelbase structure, high strength equipment, and frame, which provide large breakout force, tractive force, good stability, and shorten equipment operation cycle time, featuring excellent overall performance and suitable for heavy load in mines.
Front and rear frame link joints are in a centralized arrangement, and the wheel tracks of the front and rear wheels may coincide during turning, which improves passage while prolonging the tire life.
Key link points of the equipment adopt an anti-dust structure that prolongs the service life of the bearing pins.
A water tank with enlarged heat radiating area provides better thermal equilibrium for the diesel system, being applicable for continuous operation under extreme working conditions.
Additional hydraulic oil radiator provides better thermal equilibrium for the hydraulic system, being suitable for continuous operation under extreme working conditions.
Dual-pump converging hydraulic system features high-efficiency, energy-saving, and sound power performance.
All hydraulic coaxial flow amplification steering system makes the operation more flexible and reliable.
Top-grade Johnson maintenance-free battery enables reliable and stable operation.
| Base parameter | Operating weight | 23000kg |
| Rated load | 7000kg | |
| Bucket capacity | 3.5m³ | |
| Engine | Engine model | Weichai WD10G270E201(Tie II) |
| Rated power | 199kw | |
| Rated rotate speed | 2200rpm/min | |
| Max.torque | 920N.m | |
| Performance parameters | Breakout force | – |
| Raise time | ≤6.8s | |
| Total | ≤12.5s | |
| Grade ability | ≥25° | |
| Forward I | 0-8.5km/h | |
| Forward II | 0-16.5km/h | |
| Forward III | 0–25km/h | |
| Forward IV | 0-42km/h | |
| Reverse I | 0-8.5km/h | |
| Reverse II | 0-16km/h | |
| Reverse III | – | |
| Overall dimensions | Overall length | 8980mm |
| Overall width | 3200mm | |
| Overall height | 3550mm | |
| Bucket width | 3200mm | |
| Track base | 2150mm | |
| Wheelbase | 3550mm | |
| Working range parameters | Min. ground clearance | – |
| Max.dumping height | 3250mm | |
| Max. dumping reach | 1460mm | |
| Min. turning radius | – | |
| Other | Transmission | Countershaft(Caterpiller technology) |
| Tire type | 26.5-25 |

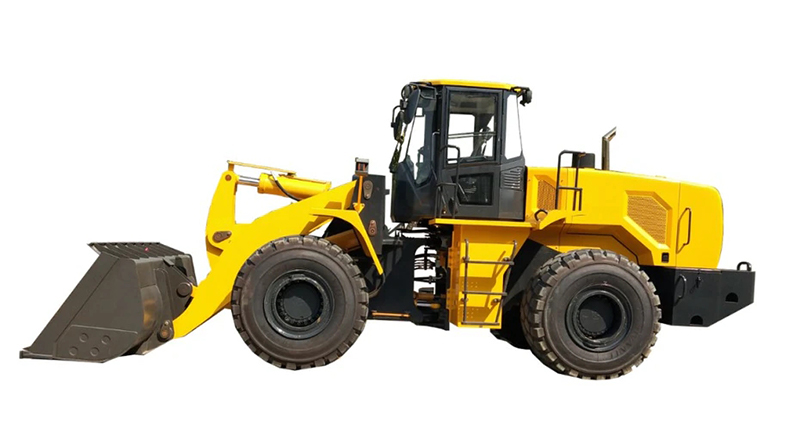

This LT978 is applicable for strip mining, strip coal mining, or other overloading or overload conditions.
