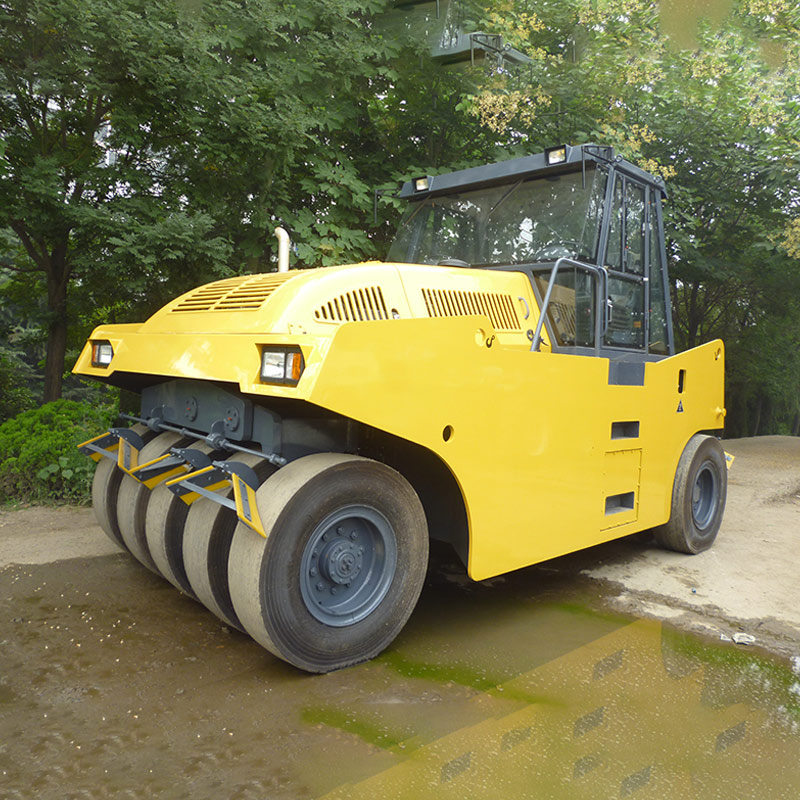

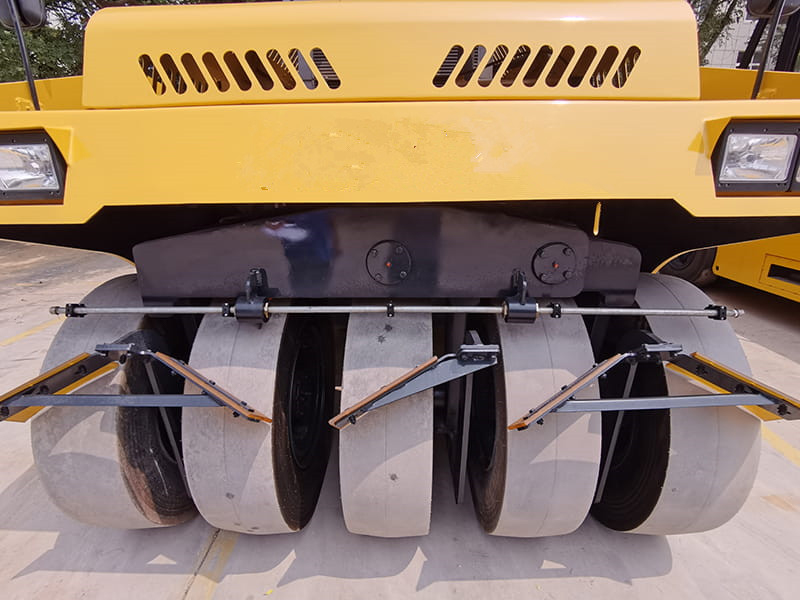

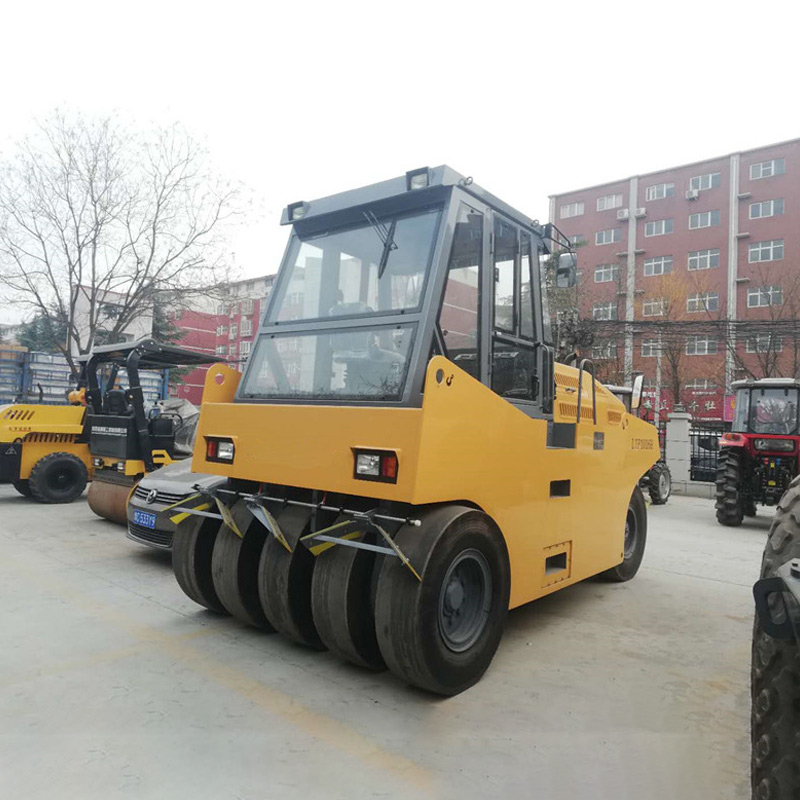

The pneumatic roller is a kind of machine that uses multiple pneumatic tires to compact the road. Tire rollers use pneumatic tires, usually equipped with 3 to 5 front wheels and 4 to 6 rear wheels. If you change the inflation pressure, the ground pressure can be changed, and the pressure adjustment range is 0.11～1.05 MPa. It adopts a hydraulic drive system, three-point support with a wide-base tire articulated frame structure. The compaction process has the effect of rubbing, So that the particles of the compacted layer will not be destroyed but embedded in each other, and the particles will be uniform and dense.
InquiryWith stepless speed changes, LTP1016H/LTP1826H/LTP2030H is easy and reliable to operate.

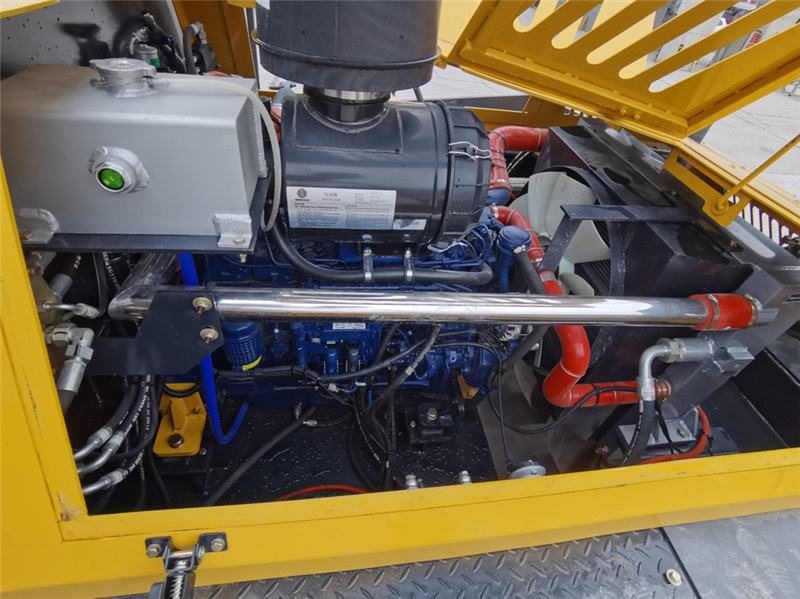

Power strength, LTP1016H/LTP1826H/LTP2030H adopted 4BT Cummins engine, is suitable to all environments.

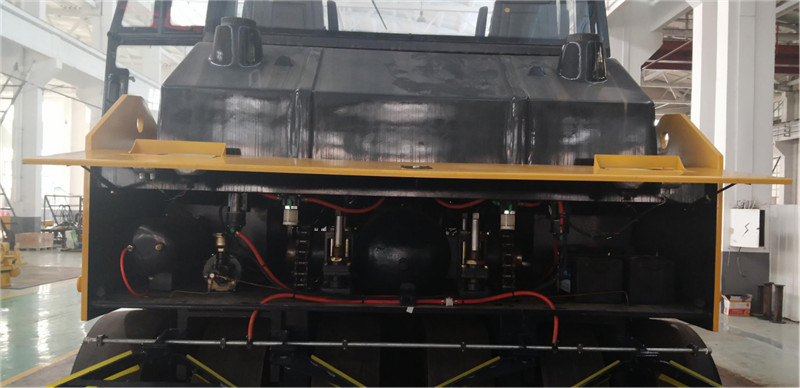

Three forward speed and two backward changes, a Reinforced plastic spraying box, and a multi-layer water filter ensure the stability of the system.

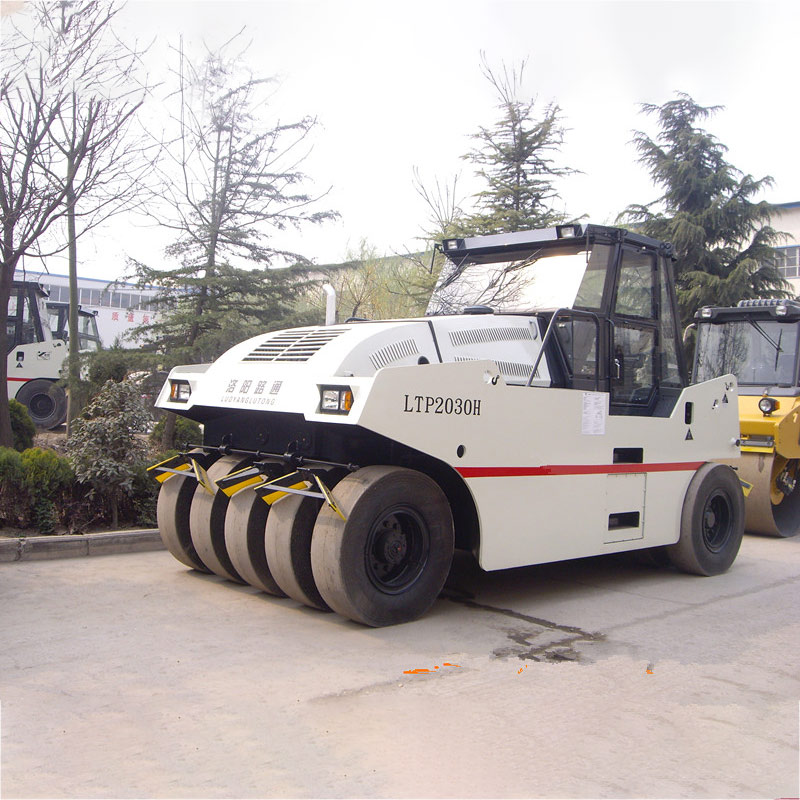

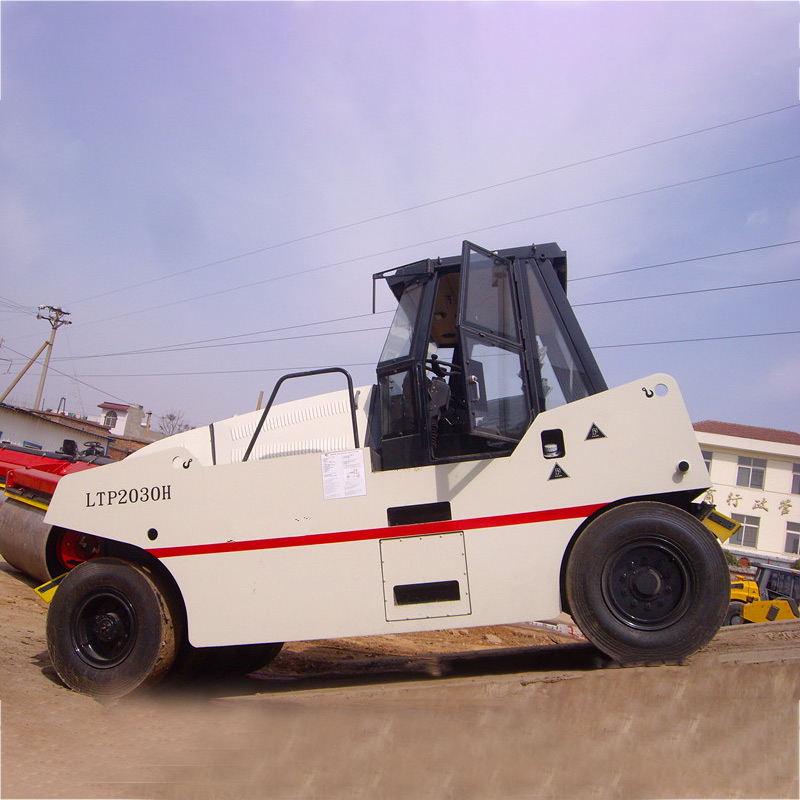

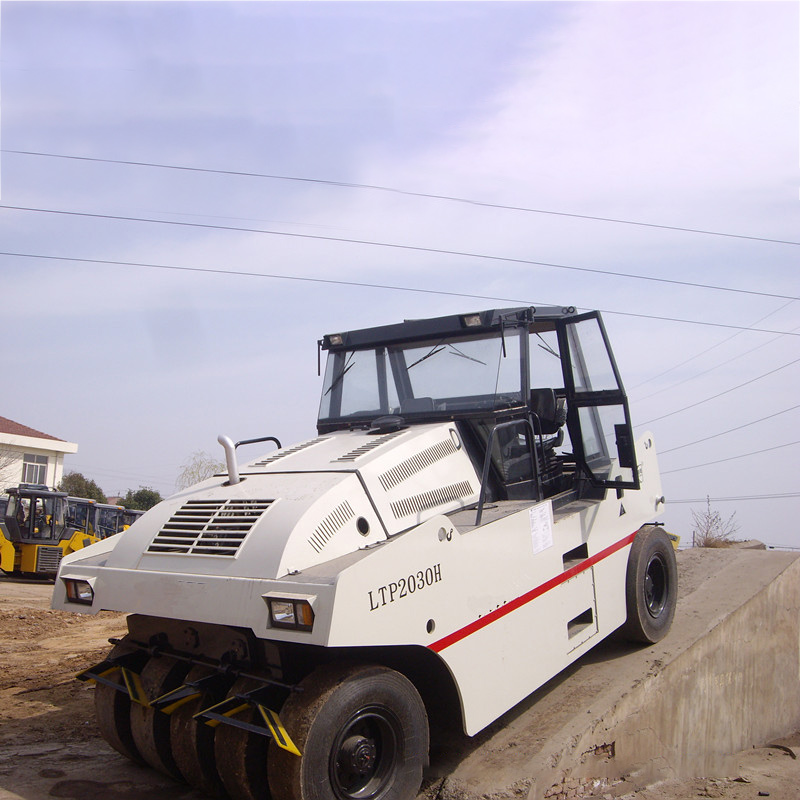

LTp1016h/1826h/2030h hydraulic drive pneumatic tyre roller main technical parameters| Model | LTP1016H | LTP1826H | LTP2030H | |
| Operating mass(unballast/ballast) | kg | 10000/16000 | 18000/26000 | 20000/30000 |
| Max. travel speed | Km/h | 14 | 10 | 10 |
| Tyre quantity(front +back ) | / | 4+5 | 5+6 | 5+6 |
| Min. Turning radius | mm | 7500 | 8000 | 8000 |
| The presses width | mm | 2280 | 2790 | 2790 |
| Grade ability | % | 30 | 30 | 30 |
| wheelbase | mm | 3700 | 3800 | 3800 |
| Overall dimension | mm | 4780*2100*3200 | 4950*2750*3240 | 4950*2750*3240 |
| Diesel power | kw | 75 | 125 | 125 |
| Diesel model | Cummins 4BT3.9 | Cummins 4BTA5.9 | Cummins 4BTA5.9 |
The tire roller series relies on its weight to compact viscous and non-cohesive materials in construction and road engineering such as asphalt concrete, gravel mixture, various stabilized soils, and roller-compacted cement concrete (PCC materials), etc., especially suitable for high-grade Road surface treatment.
